Description
The Watson-Marlow 323 Series Drive features variable speed control, allowing precise adjustments to suit different applications. It operates within a motor speed range of 3.0 to 400 rpm, ensuring flexibility in performance. The enclosure has an IP31 rating, providing protection against solid objects and limited moisture exposure. Users can control the pump manually or remotely using 4-20mA or 0-10V analogue auto-control, as well as RS232 control commands. The pump head incorporates a 3-roller design, ensuring smooth and efficient operation.
The series drive supports multiple voltage inputs, including 100V, 120V, 220V, and 240V, making it adaptable to various power supplies. An LCD display provides clear and easy-to-read information for monitoring and adjustments. With a flow rate ranging from 0.81 to 2000 mL/min, the pump accommodates a wide range of fluid handling requirements. The 323S/D also features a reversible function, allowing users to change the flow direction as needed.
Key Features of the Watson-Marlow 323 Series Drive:
- Control Type: Variable Speed
- Enclosure Rating: IP31
- Motor Speed: 3.0 to 400 rpm

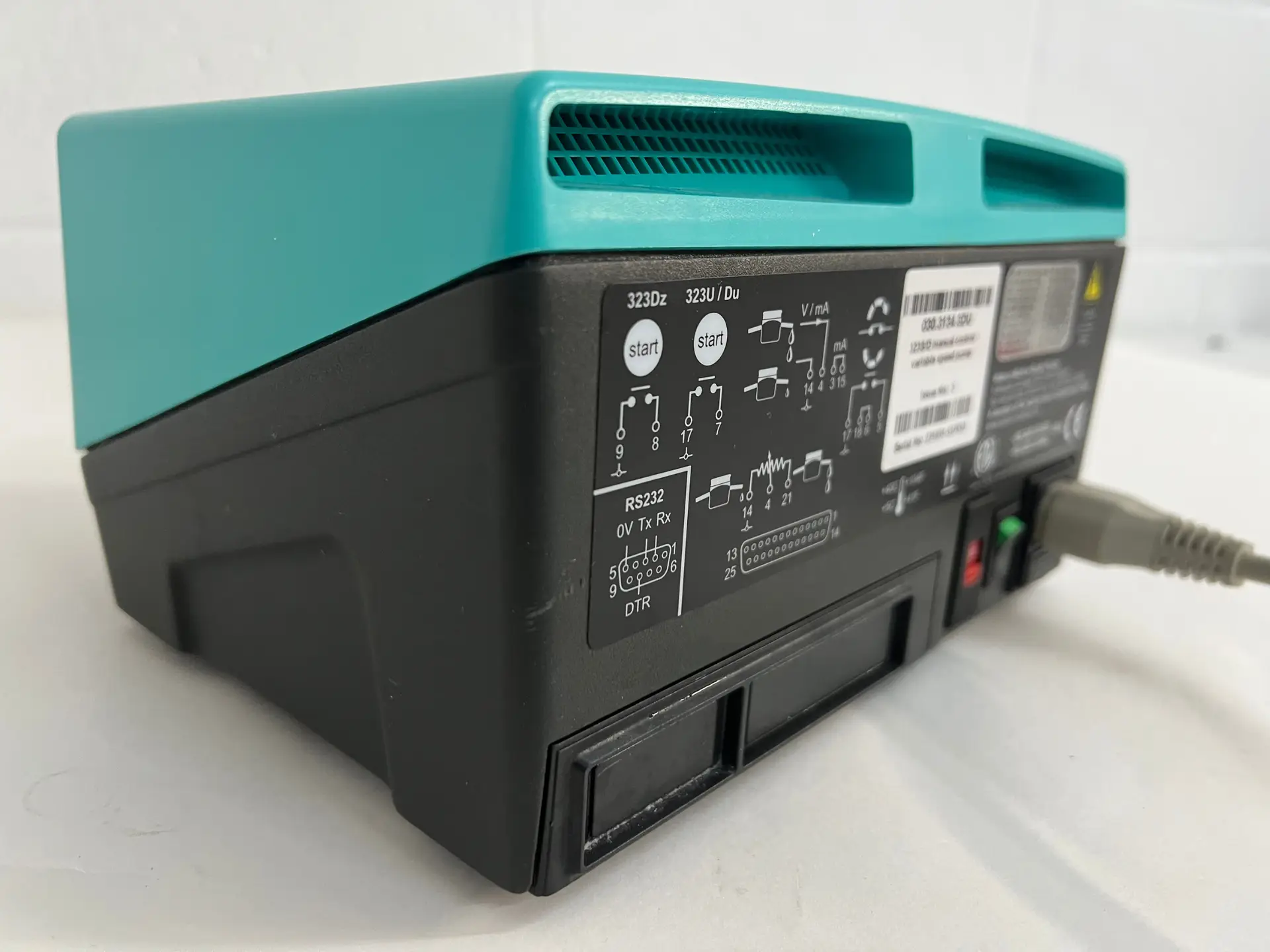

- External Control: Manual or remote 4-20mA or 0-10V analogue auto-control or RS232 control commands
- Pump Head: 3-roller pump head
- Voltage: 100/120/220/240 V
- Display Type: LCD
- Flow Rate: 0.81 to 2000 mL/min
- Reversible: Yes
