Description
The Waters Alliance e2695 Separations Module features integrated solvent and sample management capabilities to provide flexible and rugged operation for HPLC applications. The 2414 RI Detector provides the highest sensitivity, stability and reproducibility for analysis and quantification of components with limited or no UV absorption. The detector provides solutions for preparative and analytical applications including alcohol, sugar, saccharide, fatty acid, and polymer analysis.

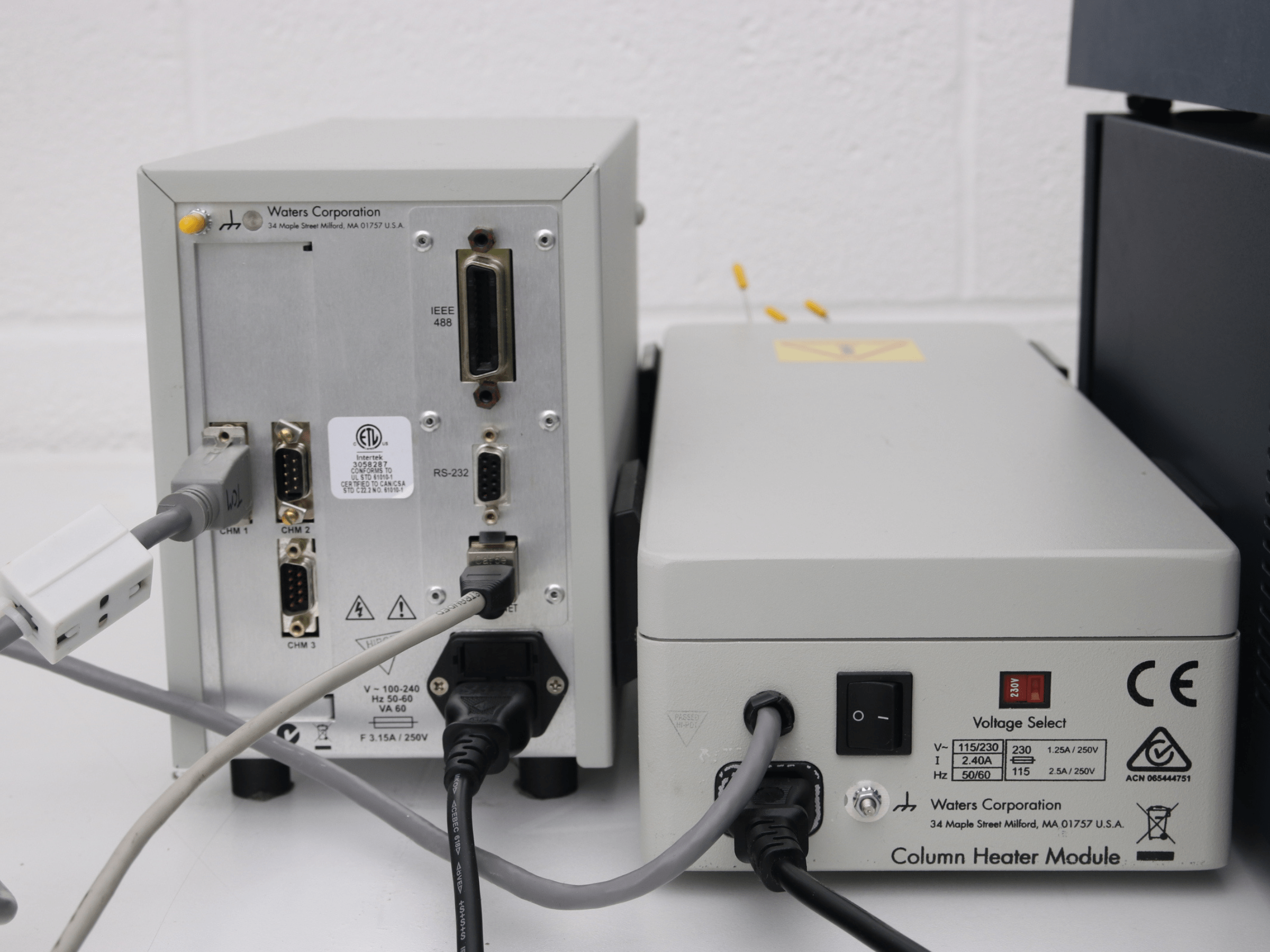

The waters temperature control module and column heater is an independent microprocessor controlled unit that provides stable operating temperatures for HPLC columns and insulates them from changes in ambient temperature. It features an easy to use keypad for independently setting temperatures of up to 3 column heater modules.
Features of the Waters Alliance e2695 Separations Module with 2414 RI Detector:
- e2695 Separations Module
- Flow Rate Range: 0.01 to 10.000ml
- Number of Solvents: 1 to 4
- Number of sample vials: 120 vials
- Sample vials capacity: 2ml
- Number of sample injections: 1 to 99 injections per sample vial
- Compressibility Compensation: Automatic and continuous
- Injection volume range: 0.1 to 100.0 µL
- Dwell Volume: ≤1.145 mL
- 11 Gradient Curves
- 2414 RI Detector
- Refractive Index Range: 1.00 to 1.75 RIU
- LED-displayed diagnostic programming
- Precise temperature control
- Auto-purge that conveniently fills the reference flow cell with fresh mobile phase
- Simplified optics bench alignment – routine maintenance is not required
- Measurement Range: 5.0 x 10-4 RIU to 7.0 x 10-9 RIU
- Linear Dynamic Range: ≤5.0% over ±5.0 x 10-4 RIU
- Waters Temperature Control Module II and Column Heater Module
- Stable operating temperatures for HPLC columns
- Audible alarms
- Control up to 3 columns
See the e2695 Separations Module Specifications Here
See the 2414 RI Detector User Manual Here
See the Temperature Control Module II User Manual Here
