Description

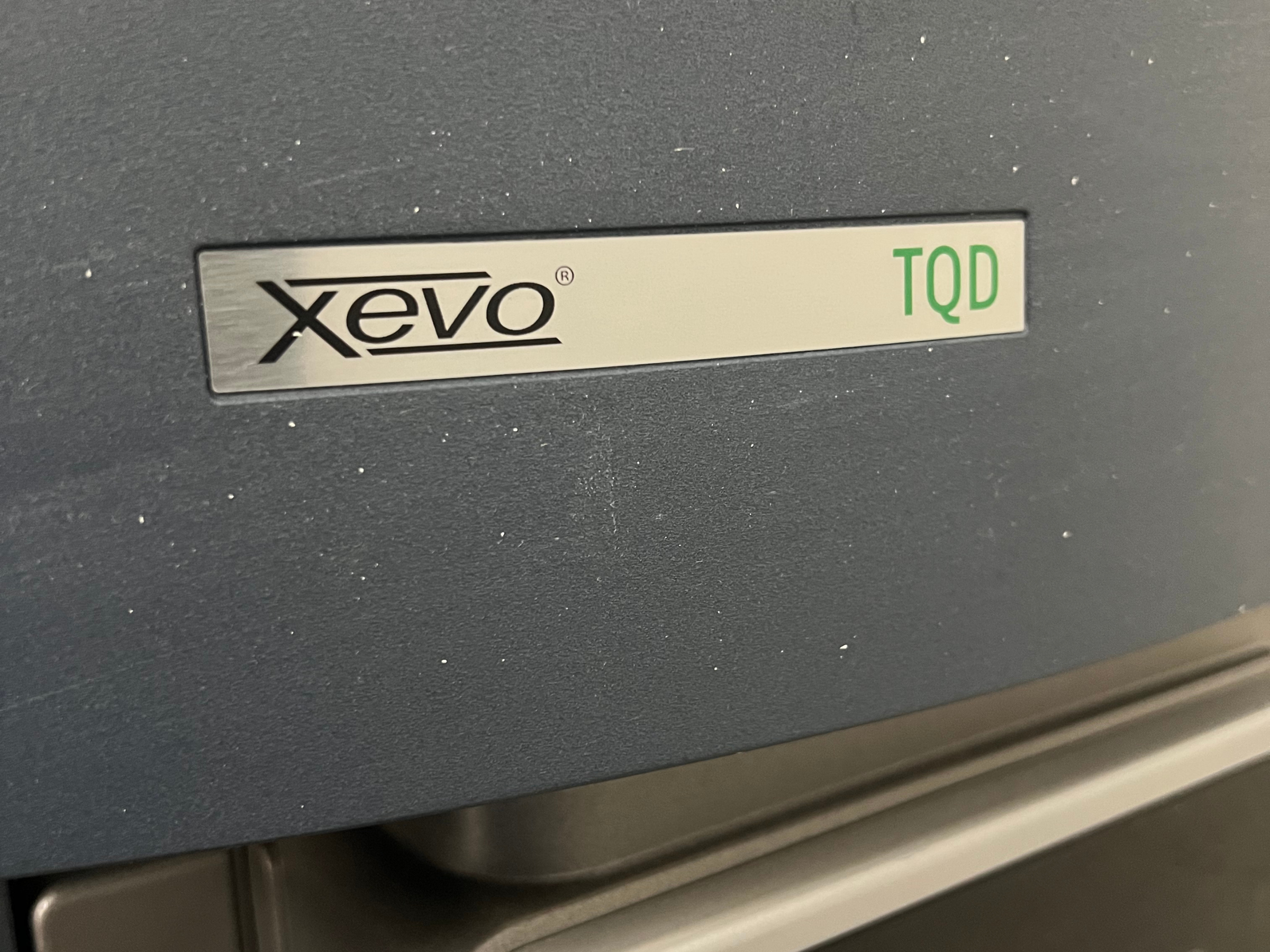

The Waters Acquity UPLC System delivers state-of-the-art performance in liquid chromatography–mass spectrometry (LC-MS), meeting the highest standards of sensitivity, throughput, and reliability. This UHPLC system combines precision-engineered UHPLC modules with the powerful Xevo TQD Mass Spectrometer, offering seamless operation for both quantitative and targeted analytical workflows. The Xevo TQD Mass Spectrometer features T-Wave Technology, which enhances ion transmission and resolution. This technology increases sensitivity and accelerates analysis, allowing users to generate high-quality data faster. The mass spectrometer also supports interchangeable ion sources, enabling flexible adaptation to a wide variety of compounds and ionisation techniques.
The Binary Solvent Manager, which delivers accurate, high-pressure gradient control to ensure consistent and reproducible separations. The Sample Manager automates injections with excellent precision, while the Sample Organiser expands capacity for large batches, supporting long periods of unattended analysis. For method development and efficient workflow switching, the Column Manager allows seamless transition between multiple columns, complete with temperature control.

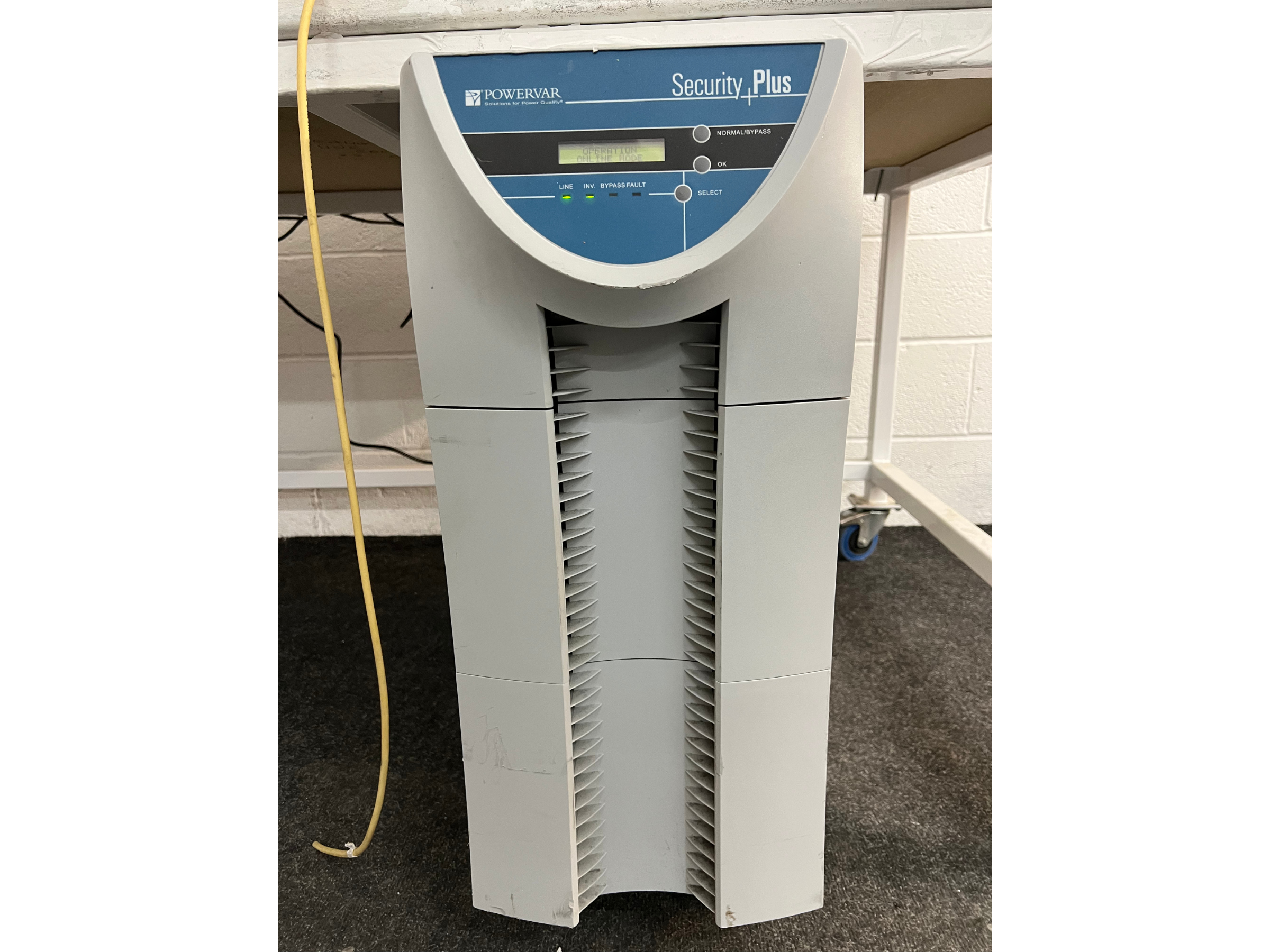

The Edwards XDS 46i Dry Scroll Vacuum Pump provides a clean, oil-free solution. It offers a maximum pumping speed of 40 m³/hour and achieves an ultimate vacuum of 0.05 mbar, ensuring reliable and efficient performance. Power continuity is guaranteed by the PowerVar Security Plus Power Supply, which supports a wide voltage range (100–240 VAC, 50/60 Hz) and features advanced communication interfaces including RS-232, USB, and DB-9 Contacts. It recharges to 90% in just 8 hours.
This Waters Acquity UPLC System Includes:
- Xevo TQD Mass Spectrometer
- T-Wave Technology
- Compatible with Interchangeable Ion Sources
- Binary Solvent Manager
- Flow Rate 0.01 mL/min to 2.0 mL/min
- Sample Manager
- Sample Organiser
- Column Manager
- Edwards XDS 46i Dry Scroll Vacuum Pump
- Maximum Pumping Speed 40 m³/hour
- Ultimate Vacuum 0.05 mbar
- PowerVar Security Plus Power Supply
- Input: 100-240 VAC, 50/60 Hz
- Output: 100-240 VAC, 50/60 Hz
- Battery Recharge Time: 8 hours to 90%
- Communications: RS-232, USB, DB-9 Contacts
Manual for the Waters Acquity UHPLC
