Description

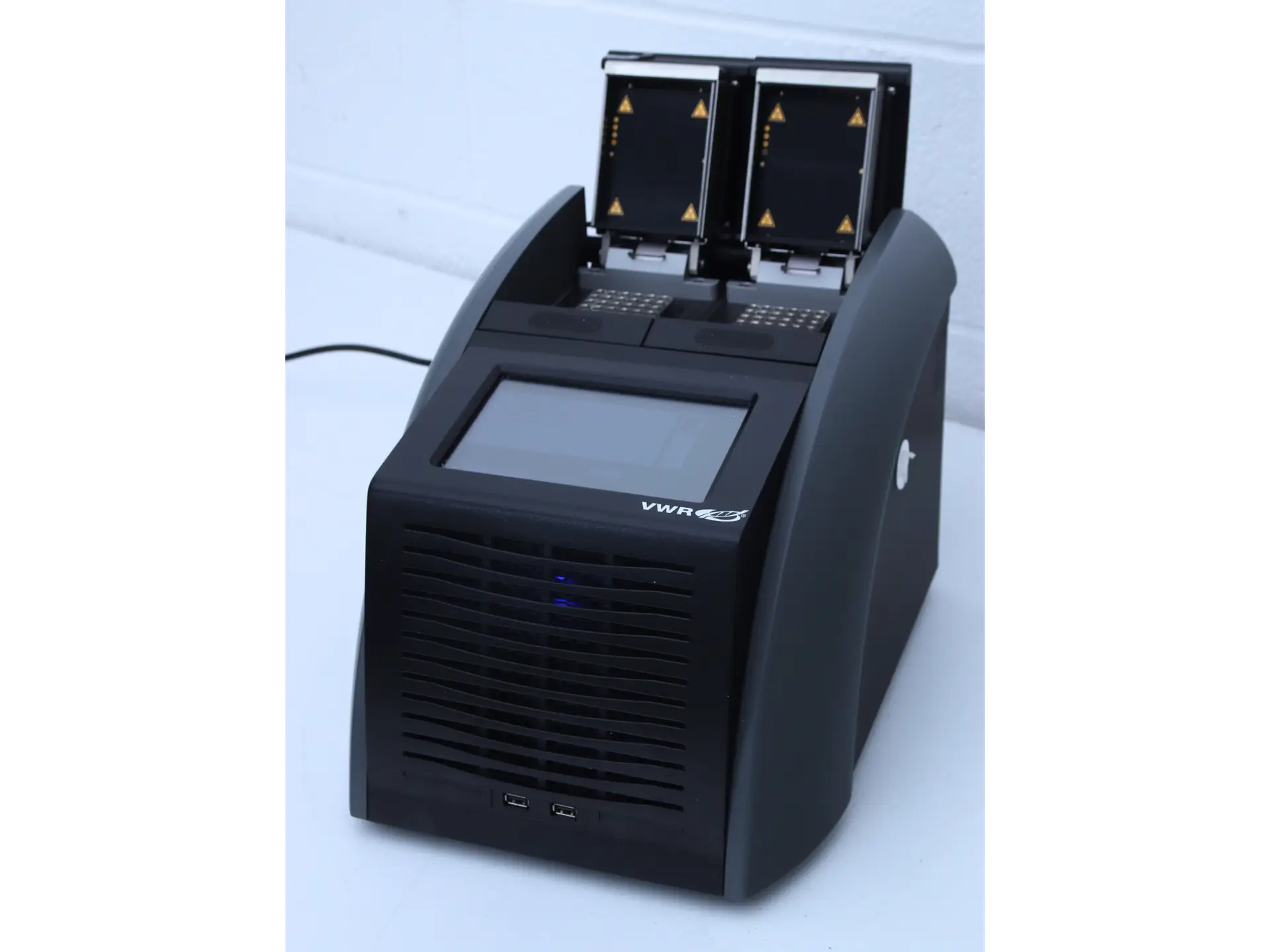

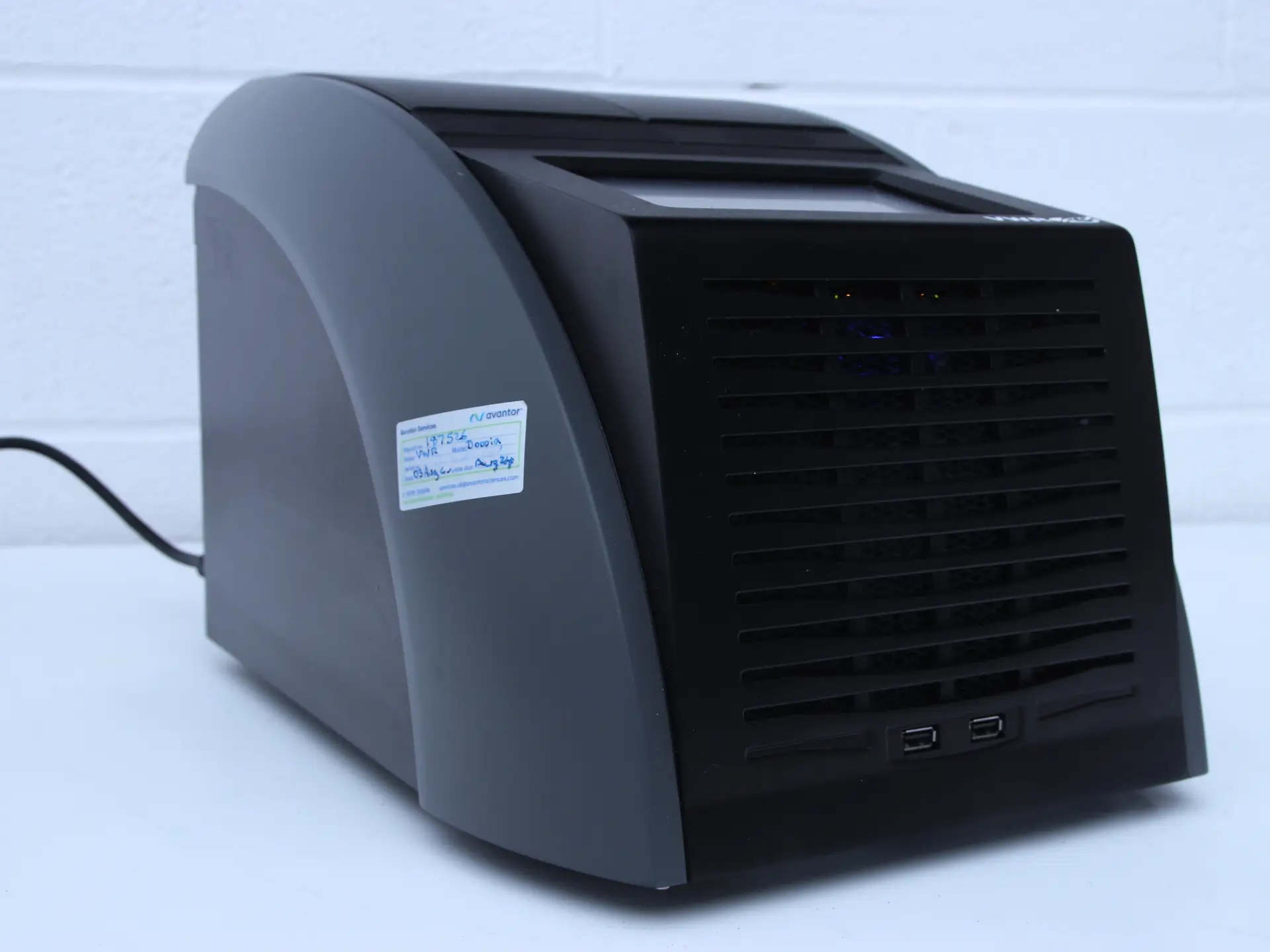

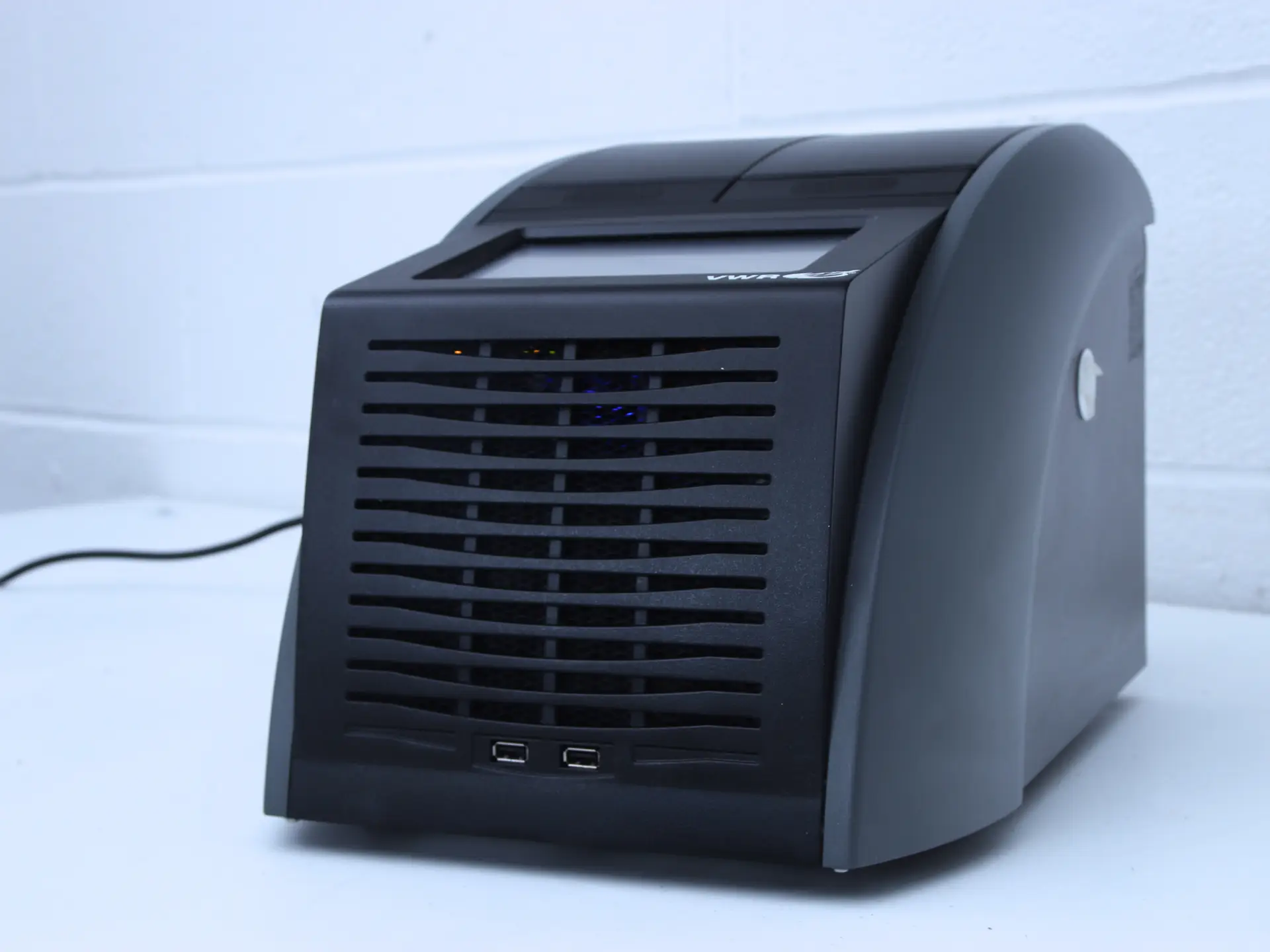

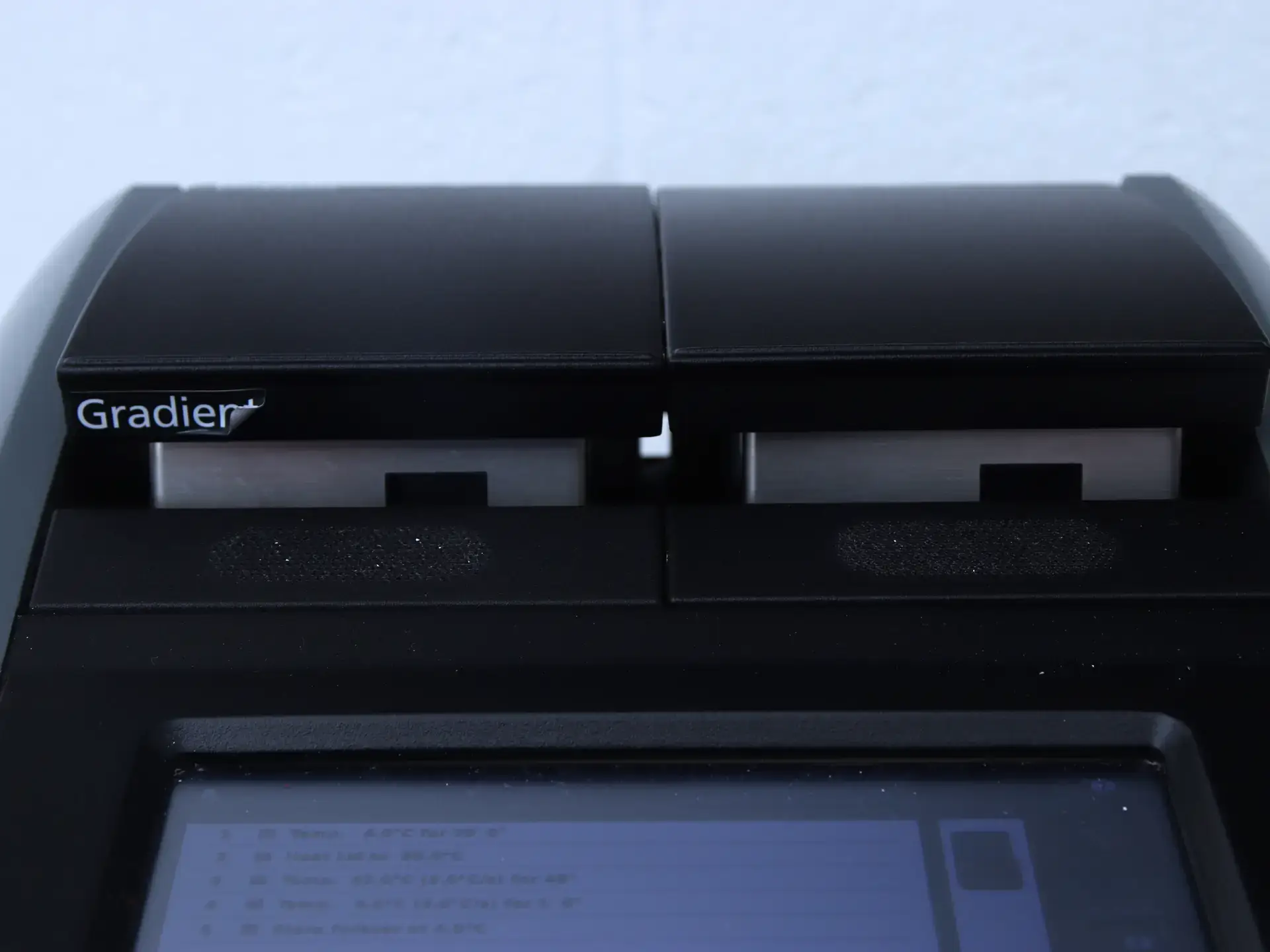

The VWR Doppio Gradient Thermal Cycler offers advanced features for precise and efficient PCR applications. With dual 48-well blocks, this thermal cycler accommodates high throughput in a compact design. The temperature range spans from 4°C to 105°C, with gradient control from 35°C. A heated lid, adjustable up to 120°C, ensures minimal condensation and sample integrity.
The VRW thermal cycler enables temperature control accuracy to within ±0.1°C, with block homogeneity maintained at ±0.2°C at the critical 72°C mark, ensuring consistent results across all wells. With powerful Peltier elements and heat sinks supported by magnetic bearing cooling fans, the Doppio Gradient achieves rapid heating and cooling up to 5°C per second. This design minimises friction, allowing precise cooling control and durability through intensive use.
The VWR Doppio Gradient Thermal Cycler features internal memory capable of storing up to 500,000 PCR protocols and offers unlimited programming when connected to a networked PC or USB memory stick. Users can navigate settings and protocols through a TFT colour touchscreen, with four USB interfaces and an Ethernet interface for streamlined connectivity and data management.
Key Features of the VWR Doppio Gradient Thermal Cycler:
- Capacity 2x 48-well blocks
- Temperature range 4°C to 105°C
- Gradient temperature range: 35°C to 105°C
- Lid temperature range: 40°C to 120°C
- Temperature stability: ±0.1 °C
- Maximum heating/cooling ramp rate: 5°C/s
- Block homogeneity: ±0.2°C at 72°C
- Cooled by Peltier elements and heat sink with magnetic bearing cooling fans
- Internal memory for 500,000 typical PCR protocols
- Unlimited programs via network PC or USB memory stick
- TFT Colour touchscreen

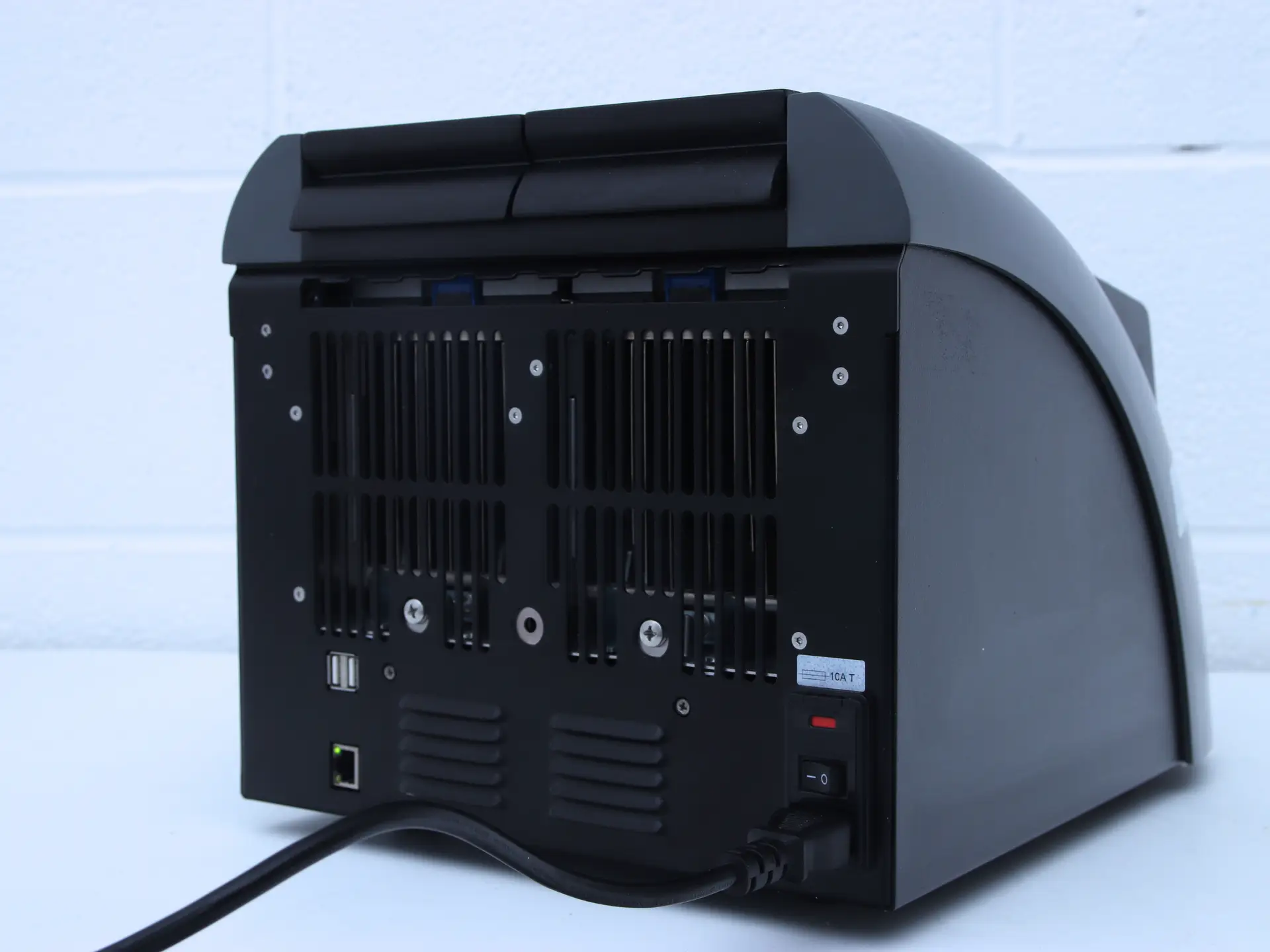

- Interfaces: 4x USB, 1x Ethernet
Useful downloads:
Brochure for the VWR Doppio Gradient
Manual for the VWR Doppio Gradient
