Description

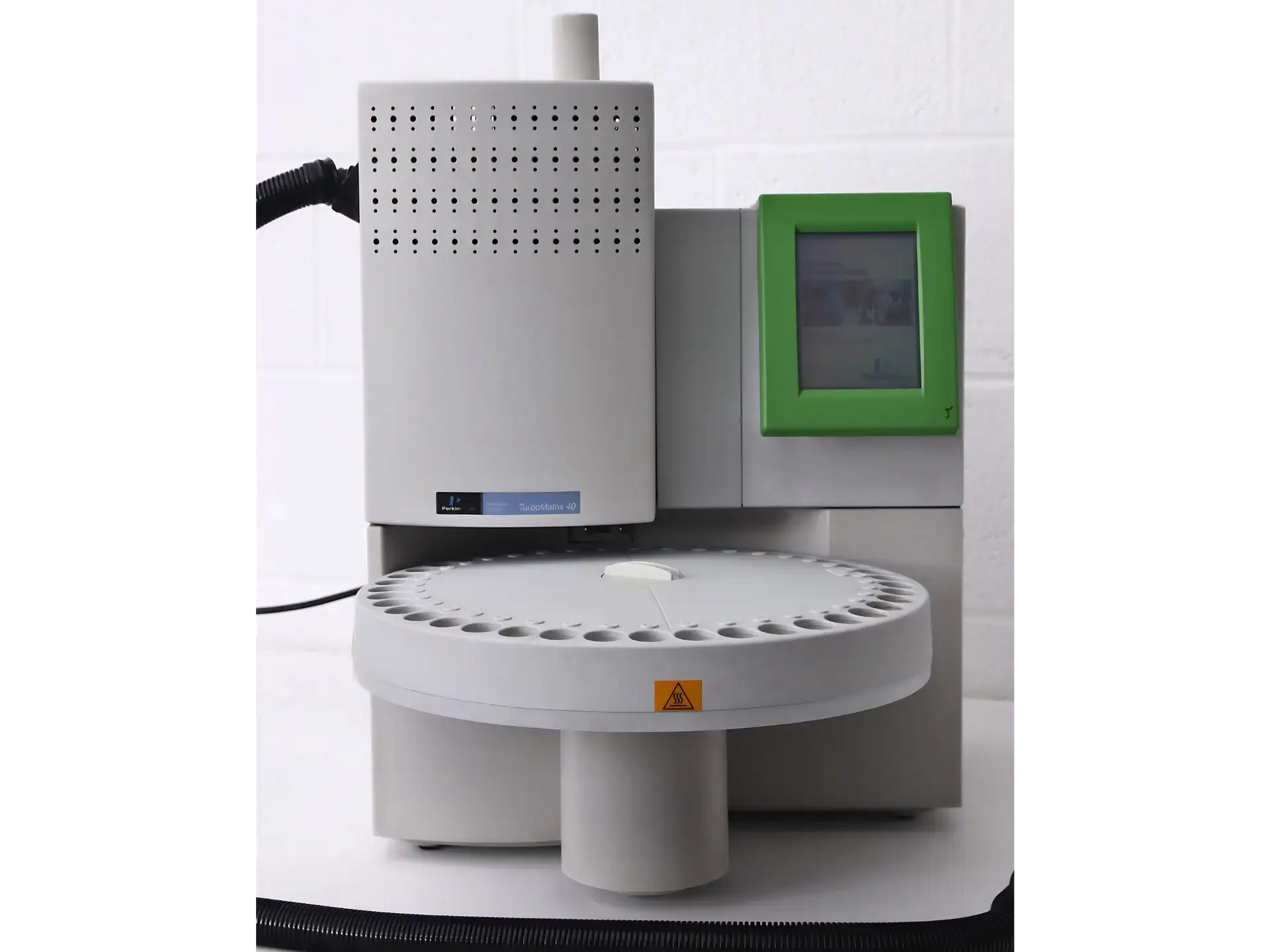

The TurboMatrix 40 is a headspace sampler from Perkin Elmer. The removable vial magazine can hold up to 40 vials, allowing users to load them for automated analysis. In headspace sampling, users place the sample (either a gas, liquid, or solid) into the headspace vial. The turbomatrix 40 immediately closes, equilibrates, and pressurizes the vial. It then withdraws an aliquot from the closed vial and transfers it directly to a connected GC. The TurboMatrix is an automatic sampler for headspace analysis. The oven can accommodate up to 12 vials and overlapping thermostatting allows the instrument to obtain maximum sample throughput.
Features of the Perkin Elmer TurboMatrix 40 Headspace Sampler:
- Headspace sampling system
- Autosampler accommodates up to 40 vials
- Solid aluminium thermostatting oven precisely controls heating time and temperature
- Overlapping thermostatting of up to 12 vials
- Sample temperature range 35ËšC to 210ËšC
- 1 ËšC increments
- Run at ambient
- Compatible with Perkin Elmer 22 mL sample vials
- Maximum liquid sample volume of 15mL
- Samples can be solid, liquid or gas

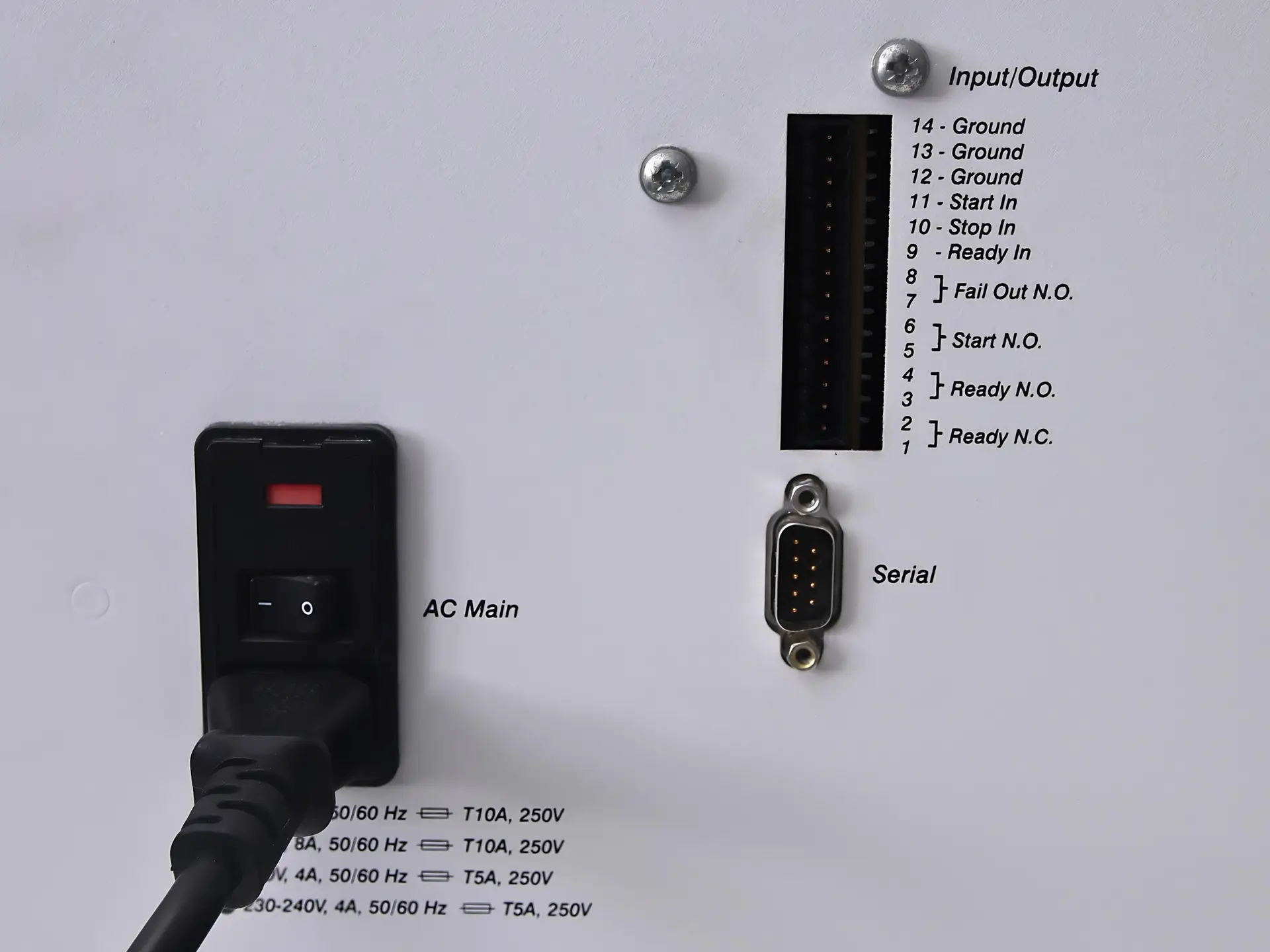

- RS232C port for connection to a PC
- The headspace is typically positioned to the right of the GC to allow connection of the transfer line
- Compatible with all capillary-column diameters in split and splitless (direct coupled) mode
Download Datasheet for Full Technical Specifications
Download User Manual for Perkin Elmer TurboMatrix 40 Headspace Sampler
