Description

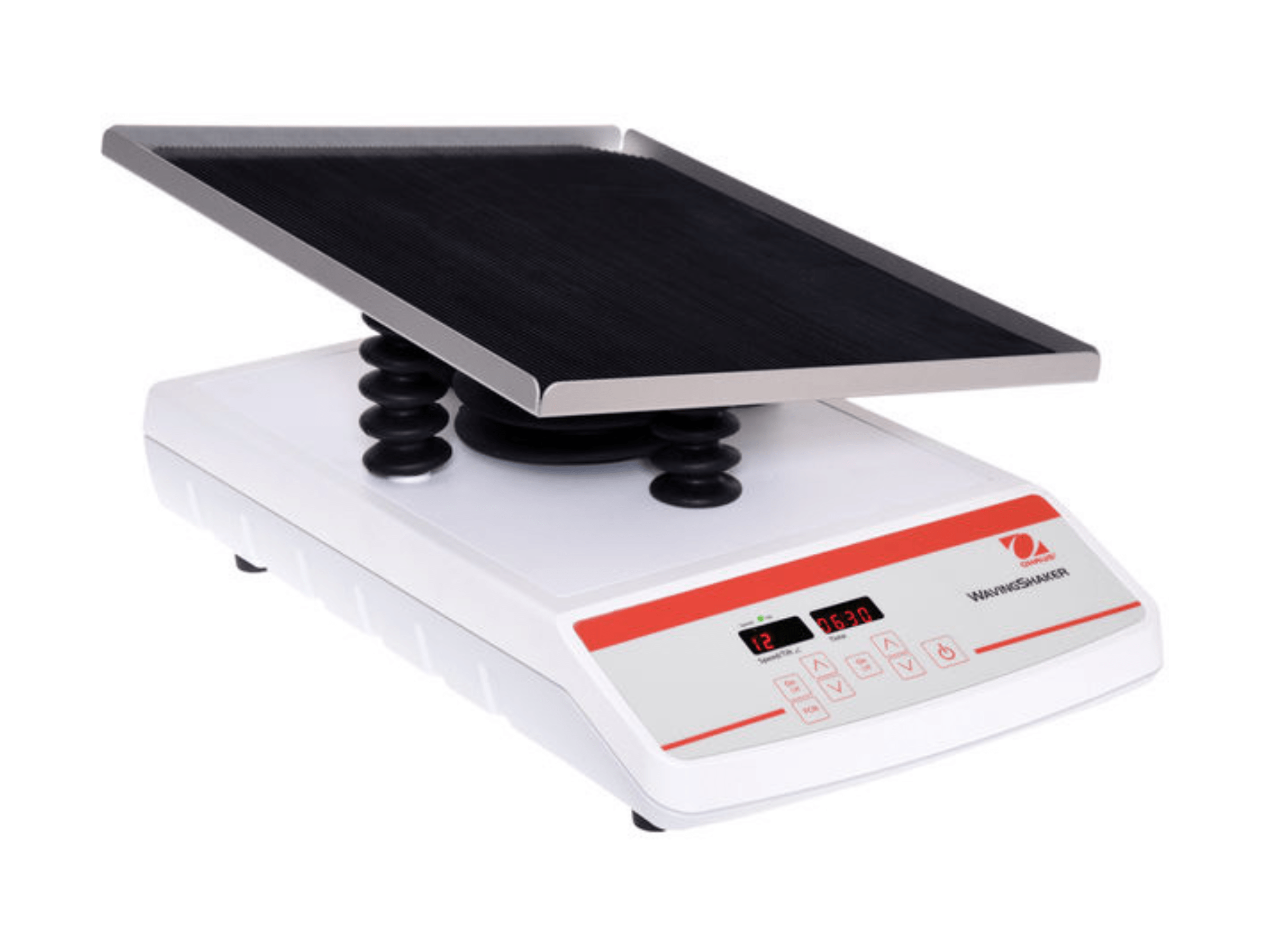

The Ohaus Waving Shaker offers a variety of features designed for optimal performance. It provides a smooth waving motion with a tilt angle of 20°, ensuring low-foaming operation. The shaker has a maximum capacity of 2.3 kg and operates within a speed range of 1 rpm to 30 rpm, maintaining a speed accuracy of ± 1 rpm.
The aluminum tray measures 29.9 x 22.2 cm and comes with a rubber non-slip mat for added stability. Users can set the timer from 1 second to 160 hours. The device includes independent LED displays for speed, tilt/angle, and time settings. For safety, the shaker is equipped with overload protection and audio/visual alarms. The shaker’s cast aluminum housing, digital control, and stepper motor drive system contribute to its durability and precise operation.
Features of the Ohaus Waving Shaker:
- Waving Motion
- Tilt Angle 20°
- Low-Foaming
- Maximum Capacity 2.3kg
- Speed Range 1rpm to 30rpm
- Speed Accuracy ± 1rpm
- Aluminium Tray 29.9 x 22.2 cm
- Rubber Non-Slip Mat
- Timer 1s to 160h
- Independent LED Displays
- Speed
- Tilt/Angle
- Time
- Overload Protection
- Audio/Visual Alarms
- Cast Aluminium Housing
- Digital Control
- Stepper Motor Drive System
Data Sheet for the Ohaus Open Air Waving Shaker SHWV02DG
Manual for the Ohaus Open Air Waving Shaker SHWV02DG
If you see any accessories on the data sheet which you need, but can’t see on our website, please give us a call on 01257 270 433, or send us a message, and we’ll be happy to help.
