Description

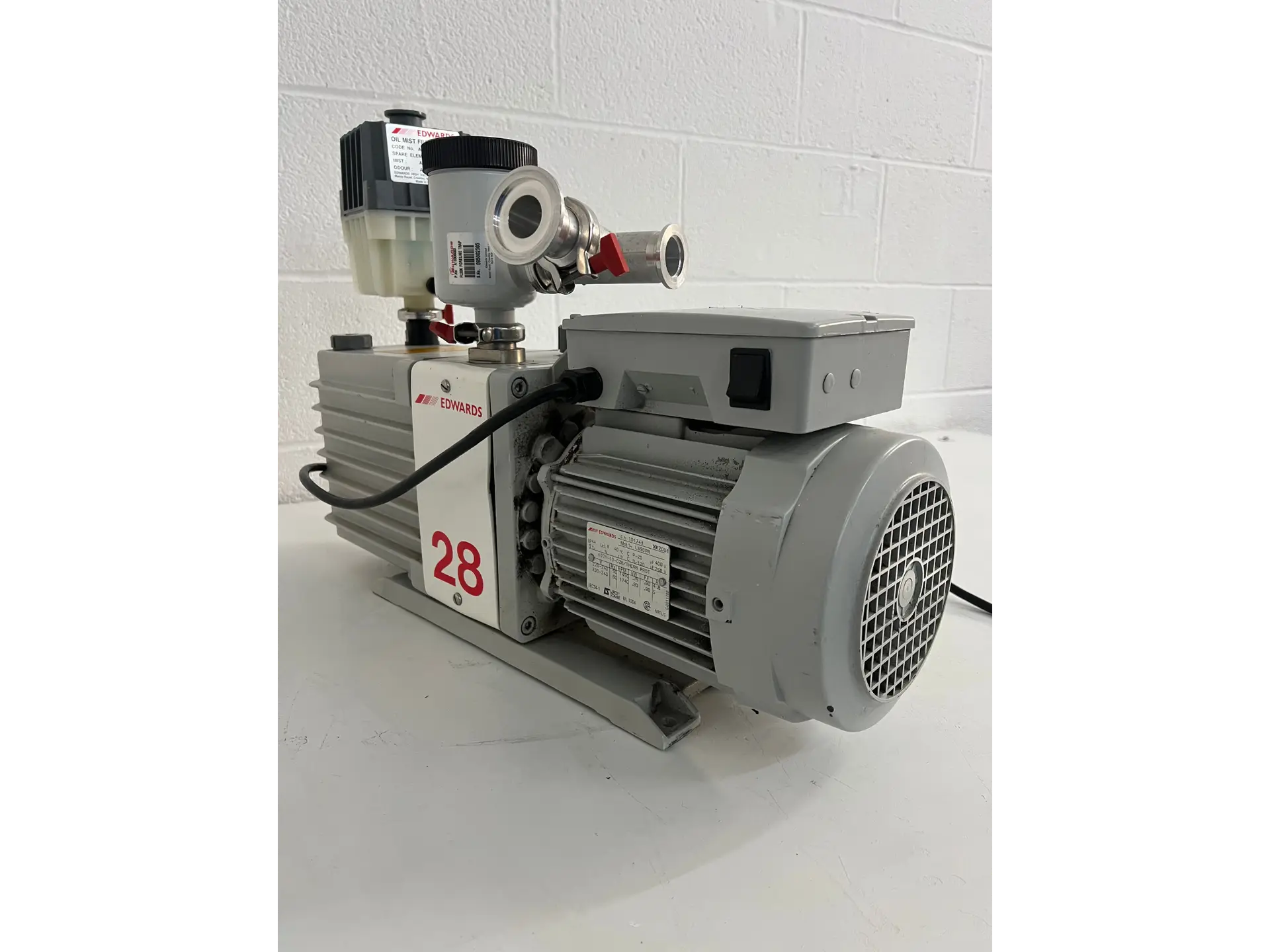

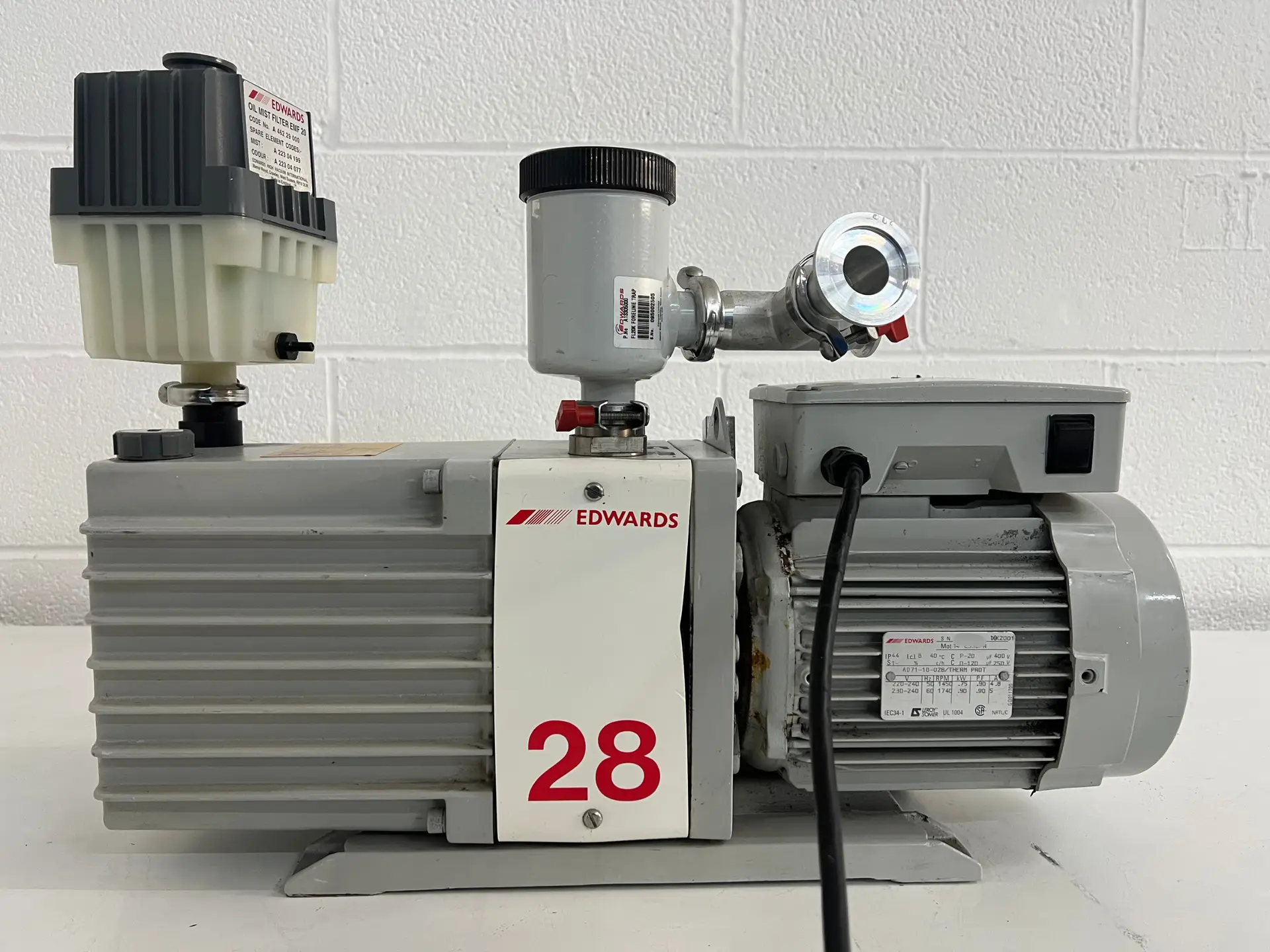

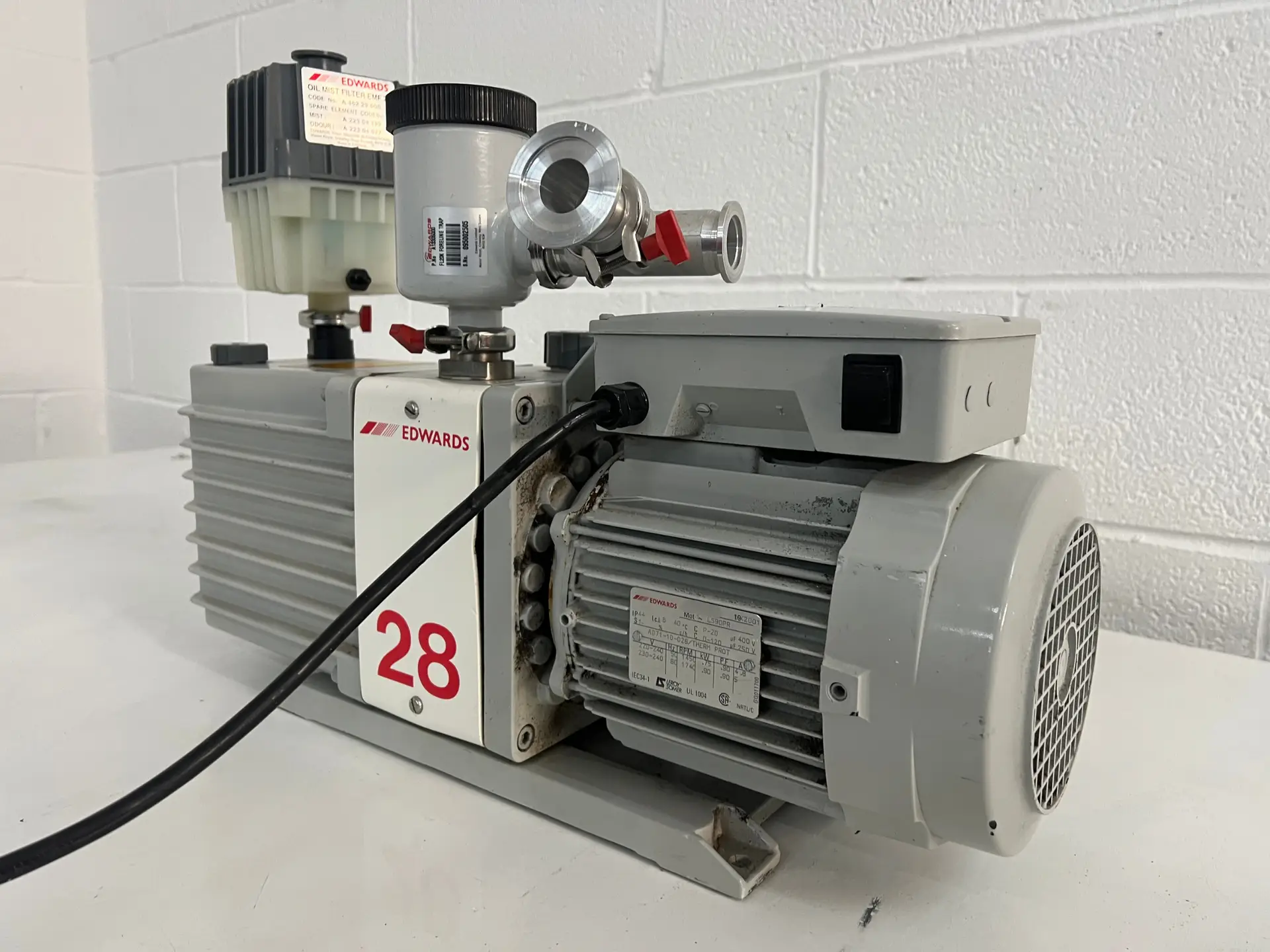

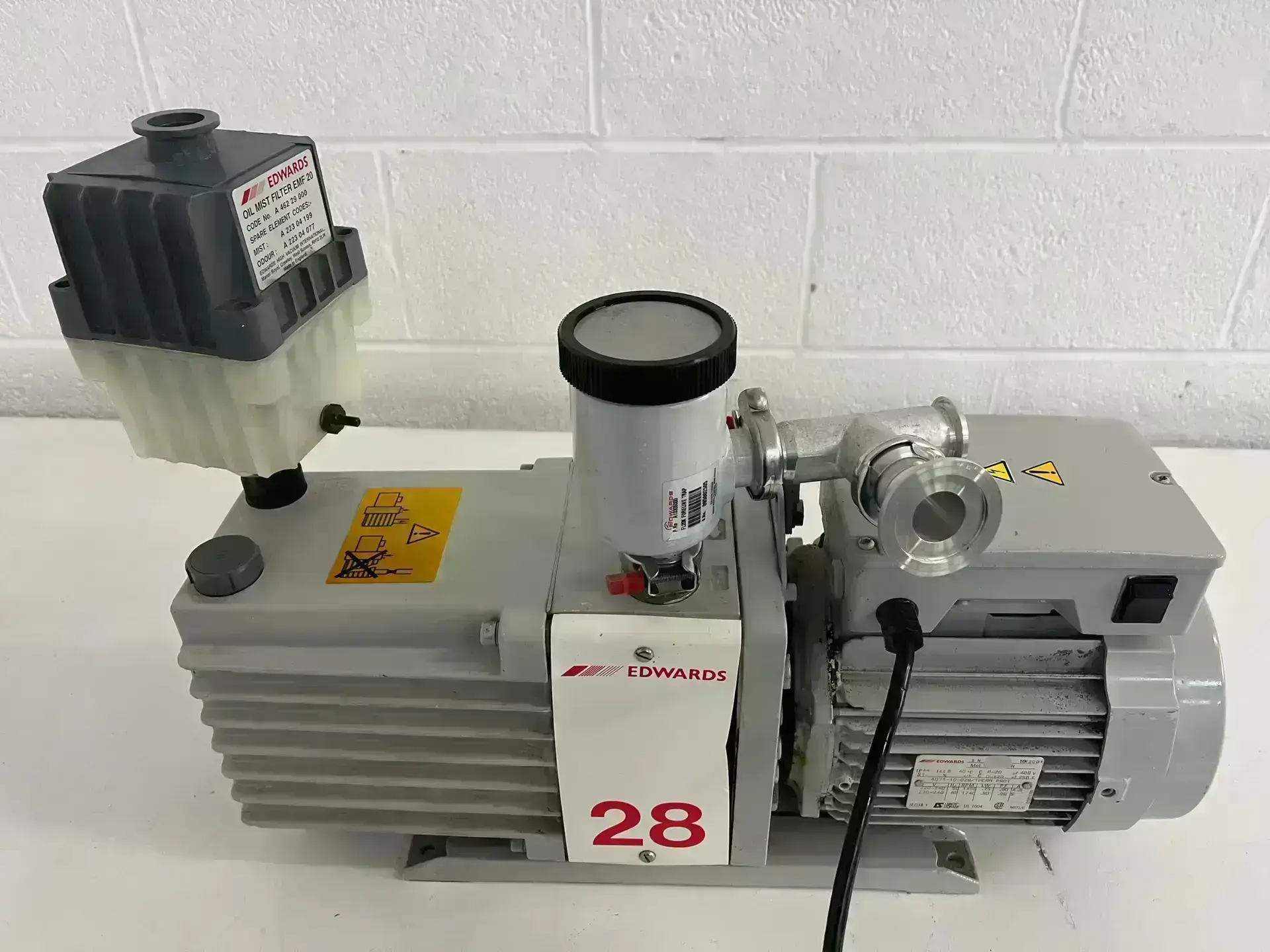

The Edwards E2M28 Vacuum Pump is a 2-stage rotary vane pup. The combined vacuum flange connection is DN 25 ISO-KF (NW25) / Hose Nozzle 15 mm. It operates with a 3-phase power supply. The pump has an IP54 rating, ensuring its protection against dust and water splashes. It produces a noise level of 57.00 dB(A) during operation and uses air cooling (forced by a fan) to maintain its temperature. The motor achieves an efficiency class of IE3, ensuring optimal energy performance.
The ultimate pressure with a gas ballast is 1.50 Pa, while the ultimate pressure without it is 0.100 Pa. The pump covers a pressure range from medium vacuum (1 mbar to 1 × 10⁻³ mbar) to rough vacuum (1000 mbar to 1 mbar). This vacuum pump utilises an oil rotary vane, two-stage technology for high performance. Its oil capacity range is from 1.200 × 10⁻³ m³ to 1.500 × 10⁻³ m³, with a maximum continuous outlet pressure of 1.500 × 10⁵ Pa. The materials exposed to vacuum include high-grade cast iron, cast aluminium, fluorocarbon elastomer, nitrile, silicon, chemically resistant polymers, nickel, and stainless steel. The rotor and stator are both made from high-grade cast iron for durability and strength.
Key Features of the Edwards E2M28 Vacuum Pump:
- Connection (Vacuum Inlet Flange): DN 25 ISO-KF (NW25)
- Connection (Vacuum Outlet Flange): Hose Nozzle 15 mm, 3/4″ BSPP (or G 3/4″) Female
- Combined Vacuum Flange Connection: DN 25 ISO-KF (NW25) / Hose Nozzle 15 mm
- Power Supply Phase: 3-Phase
- 2-Stage Oil Rotary Vane Pump
- IP Rating: IP54
- Noise Level: 57.00 dB(A)
- Cooling Method: Air Cooling (forced – fan)
- Motor Efficiency Class: IE3
- Ultimate Pressure with Gas Ballast: 1.50 Pa
- Ultimate Pressure: 0.100 Pa
- Pressure Range:
- Medium Vacuum: 1 mbar to 1 × 10⁻³ mbar
- Rough Vacuum: 1000 mbar to 1 mbar
- Oil Rotary Vane Pump (Two-Stage)
- Oil Capacity Range : 1.200 × 10⁻³ m³ to: 1.500 × 10⁻³ m³
- Maximum Continuous Outlet Pressure: 1.500 × 10⁵ Pa
- Materials Exposed to Vacuum:
- High-grade cast iron
- Cast aluminium
- Fluorocarbon elastomer
- Nitrile
- Silicon
- Chemically resistant polymers
- Nickel
- Stainless steel
- Rotor and Stator Material: High-grade cast iron
