Description

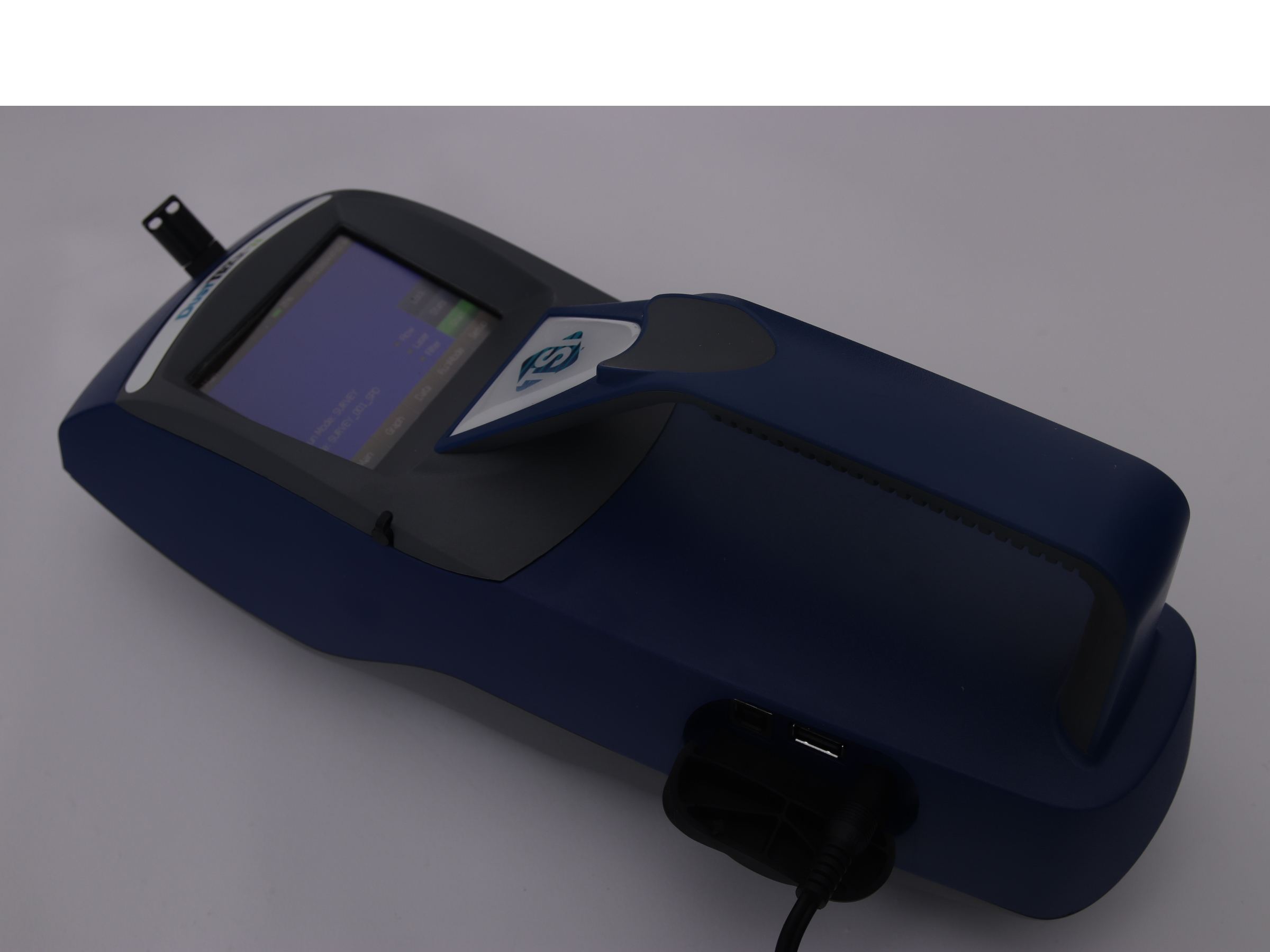

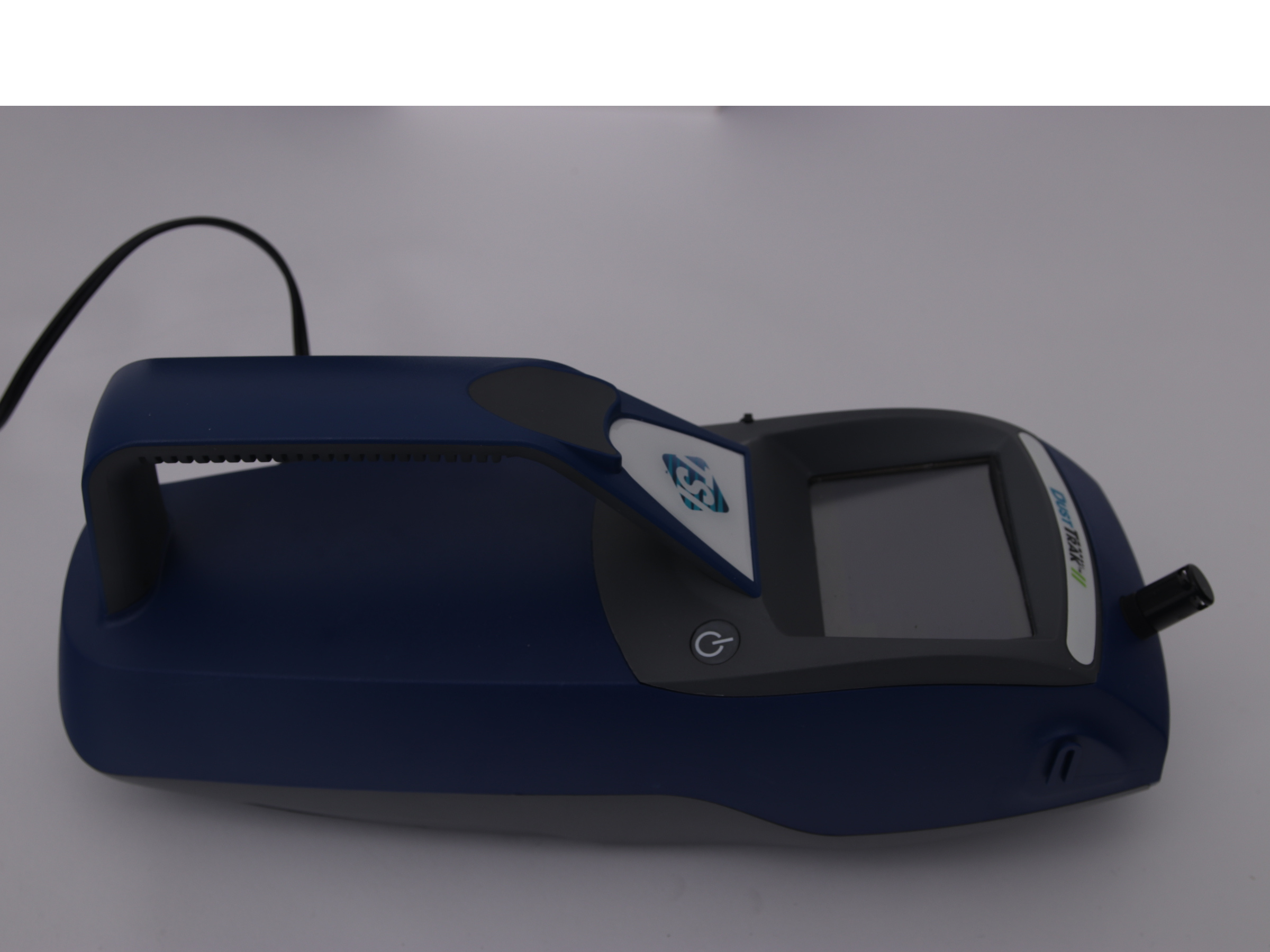

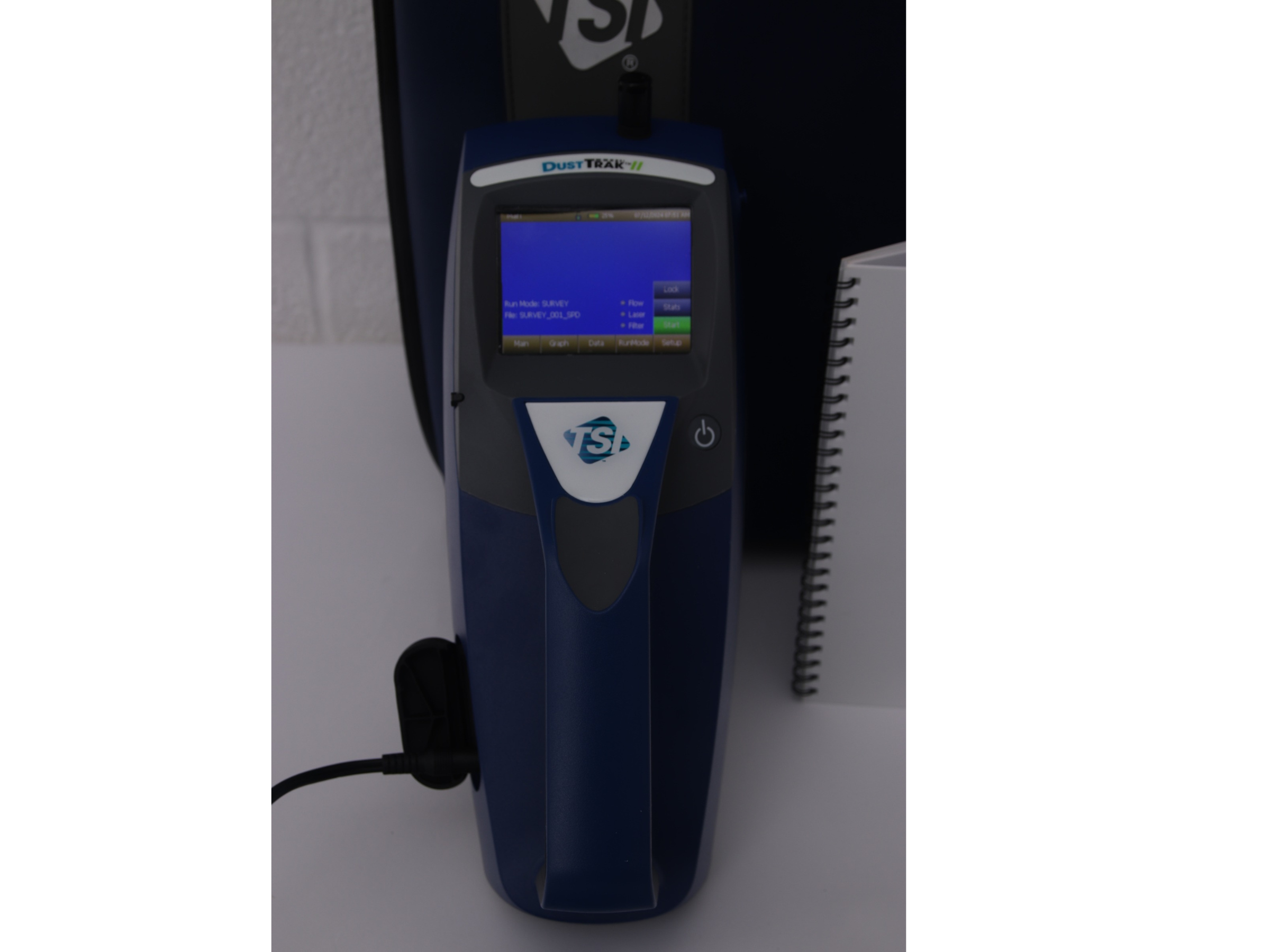

The DustTrak II Aerosol Monitor 8532 is a handheld, battery-operated device powered by a rechargeable 3600 mAH Li-Ion battery. The monitor includes eight sheath air HEPA filters, ensuring clean and accurate measurements.
This device provides real-time aerosol mass readings and can measure different size fractions such as PM1, PM2.5, respirable particles, and PM10. The aerosol concentration range for the DustTrak II is from 0.001 mg/m3 to 150 mg/m3, offering a wide measurement spectrum.
The8532 features data-logging capabilities in a single channel and uses a light-scattering laser photometer for precise measurements. The aerosol monitor has USB interfaces for easy data transfer. Additionally, the DustTrak II is compatible with a 10mm nylon Dorr-Oliver cyclone and includes a carrying case for portability and protection.
Features of the DustTrak II Aerosol Monitor 8532:
- Handheld

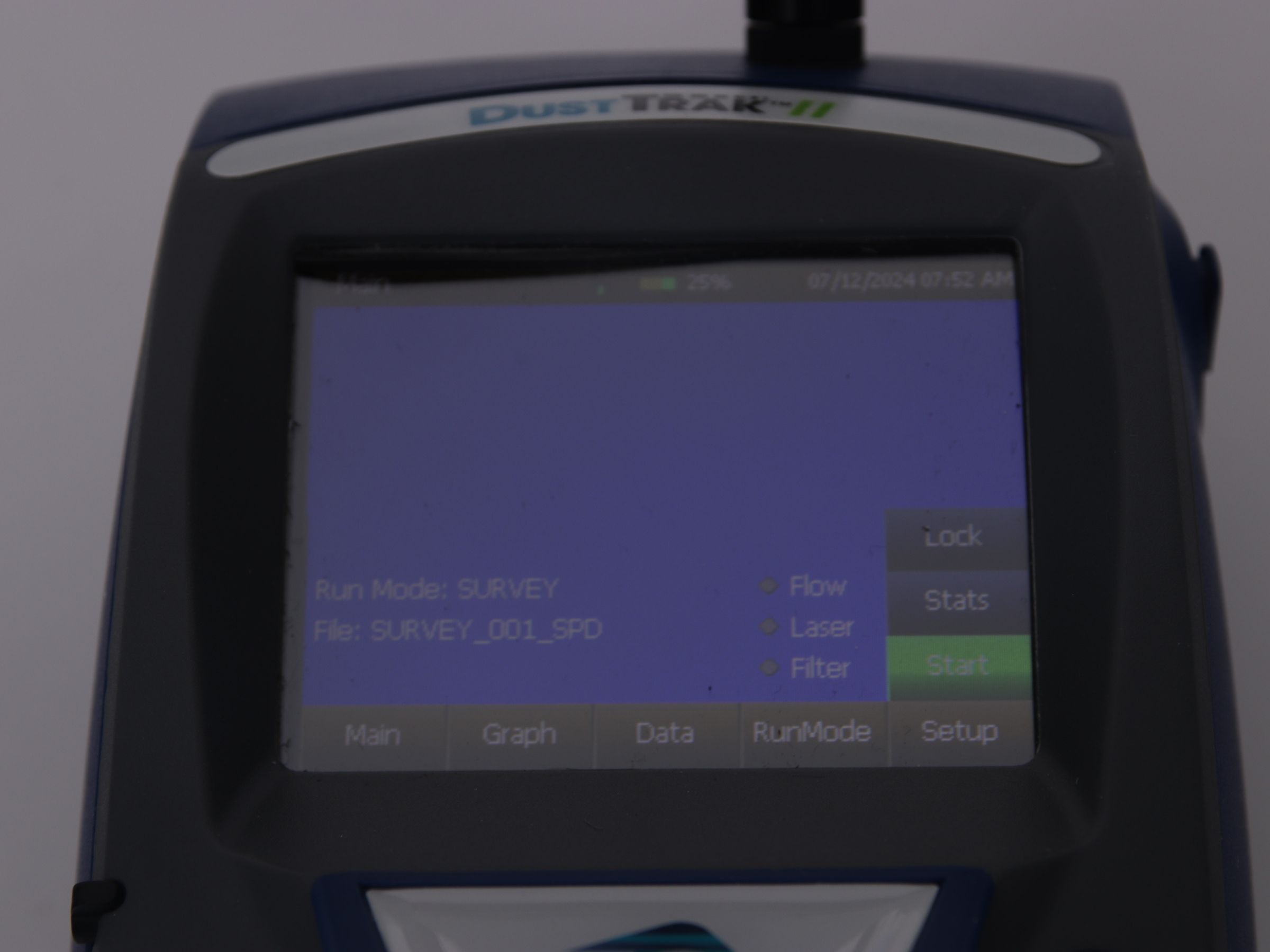

- VGA Colour Touchscreen
- Battery-Operated
- Rechargeable 3600 mAH Li-Ion Battery
- x8 Sheath Air HEPA Filters
- Real-Time Aerosol Mass Readings
- Measurements Corresponding to Size Fractions:
- PM1
- PM2.5
- Respirable
- PM10
- Aerosol Concentration Range 0.001 mg/m3 to 150 mg/m3
- Resolution ±0.1%
- Particle Size Range 0.1 to 10 μm
- Operational Temperature 0°C to 50°C
- Data-Logging
- 60,000 + Data Points
- 5MB
- Single-Channel
- Light-Scattering Laser Photometer
- Audible Alarm
- 2x Inlet Caps
- USB Interaces
- Compatible with 10mm Nylon Dorr-Oliver Cyclone

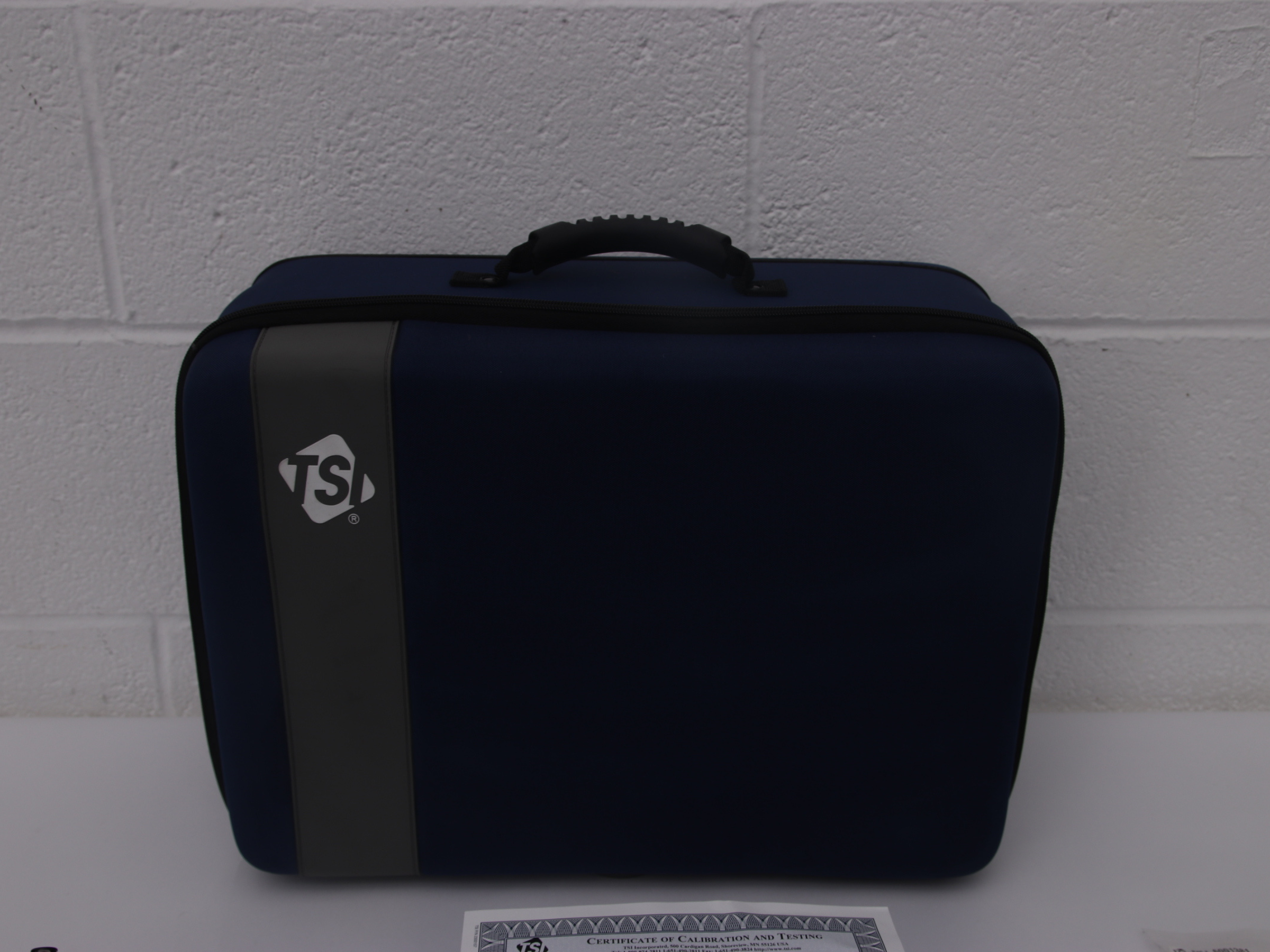

- Carrying Case
Applications
- Industrial/occupational hygiene surveys
- Indoor air quality investigations
- Point source location monitoring
- Baseline trending and screening
- Engineering control evaluations
