Description
The Statbourne Crystor 60 cryogenic liquid storage unit boasts a capacity of 60 litres, making it an ideal choice for various industrial and scientific applications. It features an electronic indicator that provides real-time monitoring of the liquid levels. The unit minimises loss with an evaporation rate of just 2% per day, ensuring efficient storage of cryogenic liquids.
Operating at a maximum working pressure of 3 bar, the Crystor 60 is built with durable stainless steel to enhance its longevity and reliability. The cryogenic storage unit self-pressurises for ease of use and includes twin fill/decant valves (colour-coded) to facilitate smooth and quick transfer of liquids. An automatic pressure regulator ensures consistent and safe operation. The system is equipped with DN15 nominal piping for optimal flow and is mounted on heavy-duty castors for enhanced mobility.
Key Features of the Statbourne Crystor 60 Cryogenic Liquid Storage/Dispensing System:
- Capacity 60 L,

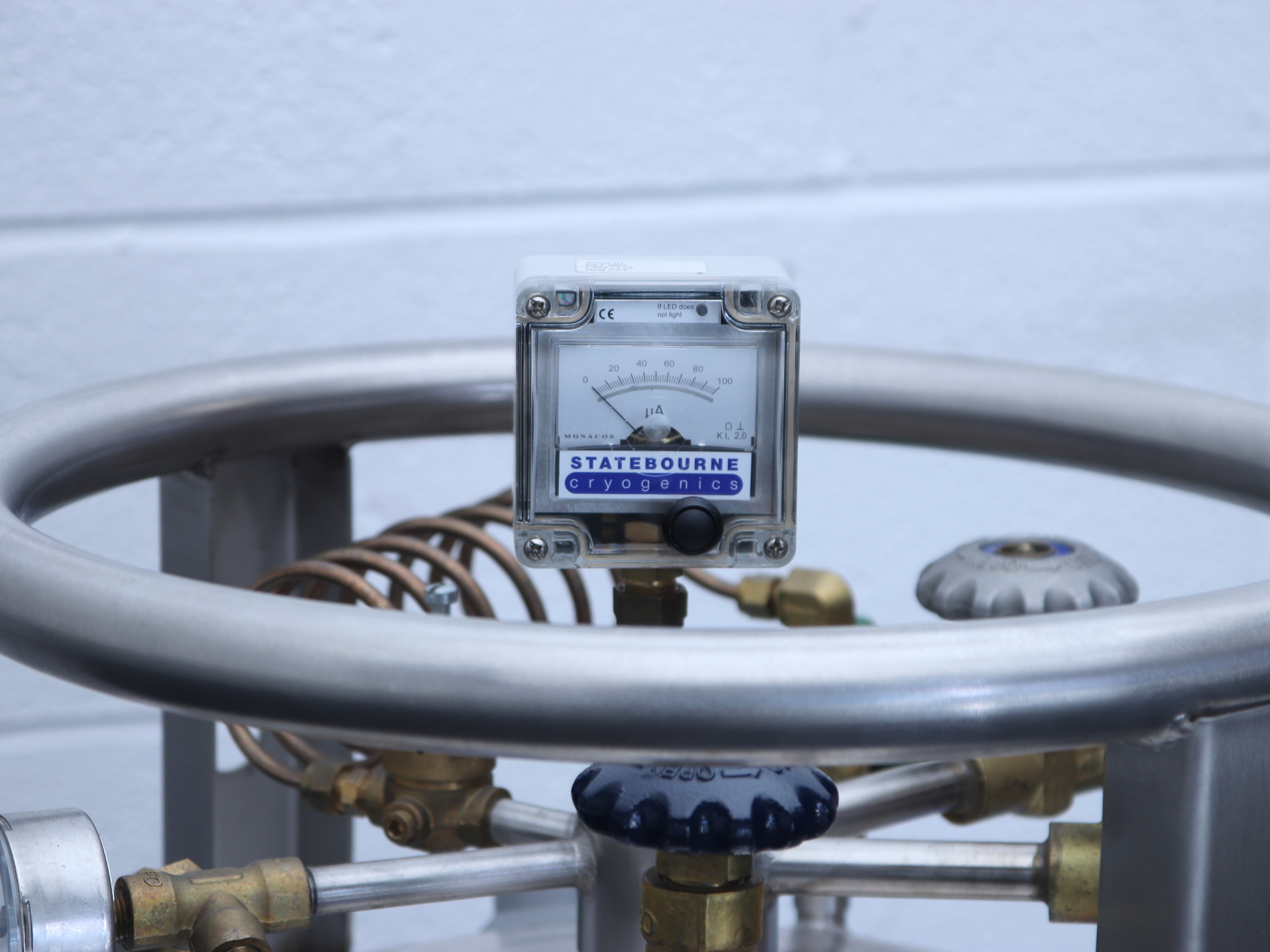

- Electronic Indicator
- Evaporation Rate 2%/day
- Maximum Working Pressure 3 bar
- Stainless Steel
- Self-Pressurising

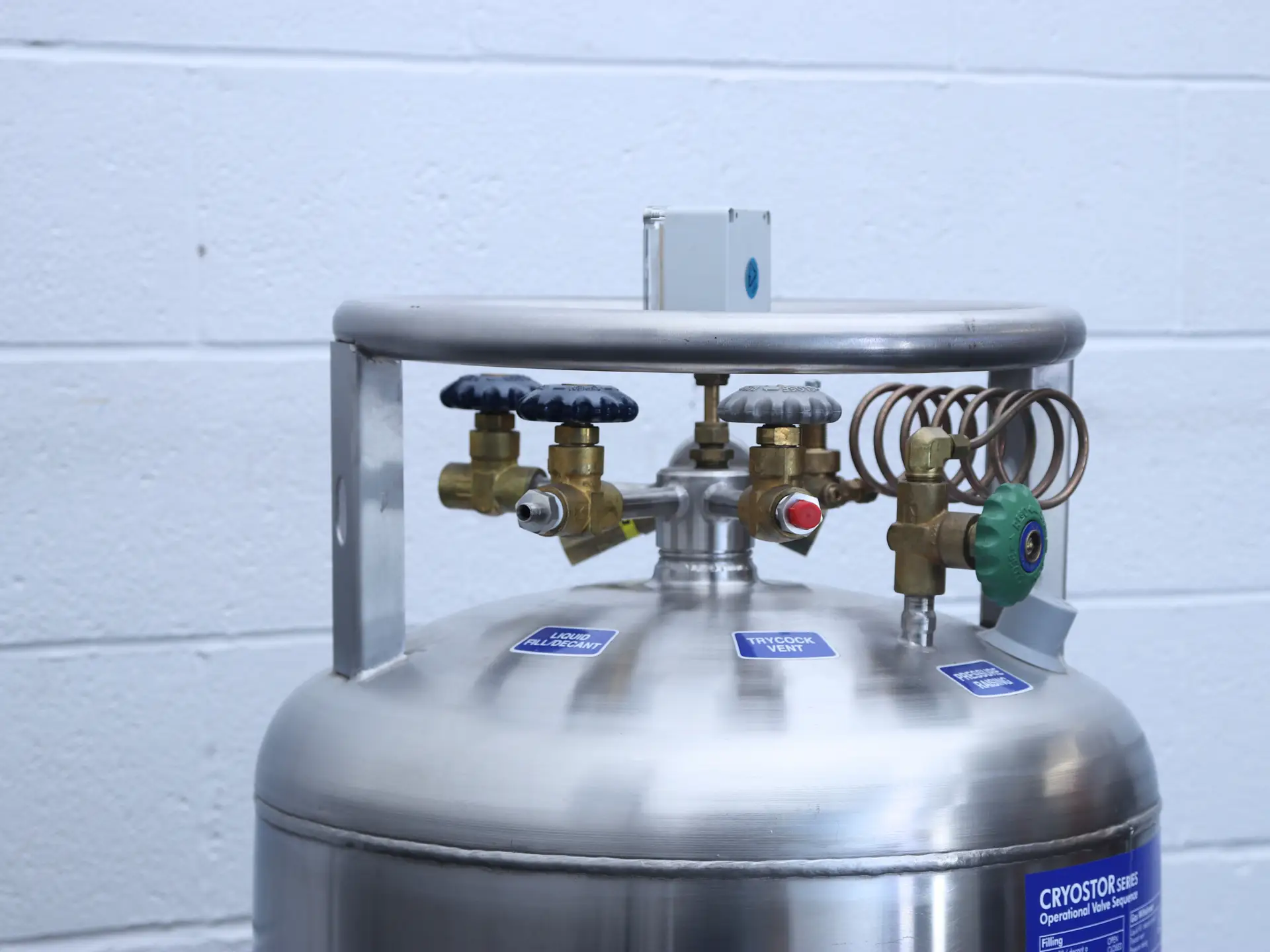

- Twin Fill/Decant Valves
- Automatic Pressure Regulator
- DN15 Nominal Piping
- Heavy-Duty Castors
- Approved Gases:
- Nitrogen
- Argon
- PED Compliant
- 97/23/EC
- Base Diameter 620 mmr
- Weight Empty 65 kg
Weight Full with Liquid Nitrogen 114 kg
