Description

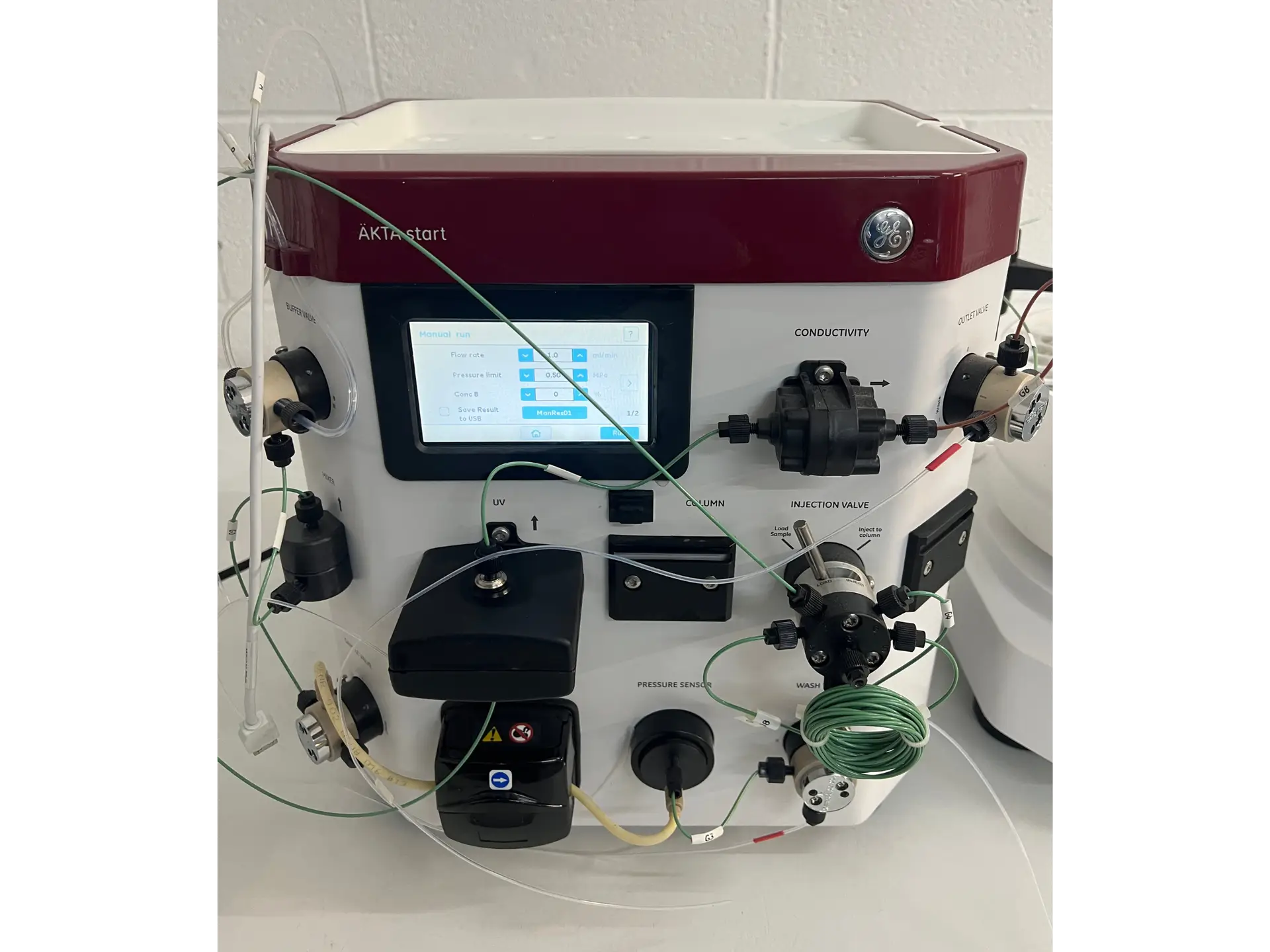

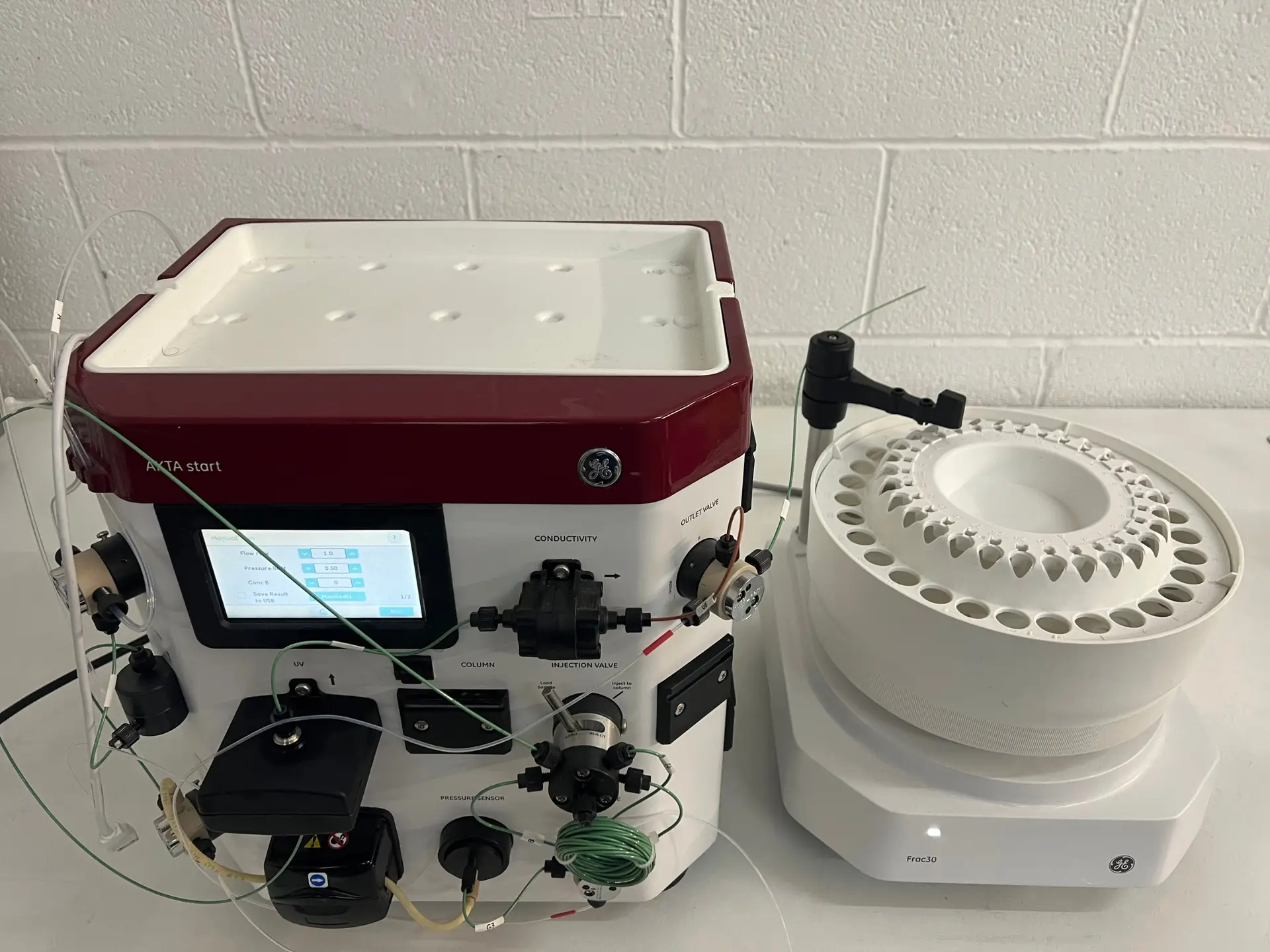

The AKTA Start Protein Purification System is a compact, user-friendly chromatography system designed for efficient laboratory-scale protein purification. With its intuitive touchscreen interface, it simplifies method setup and real-time monitoring. When paired with the Frac30 Fraction Collector, the system allows for the collection of up to 30 fractions, supporting tube sizes ranging from 1.5 mL to 15 mL. The fraction volume range spans from 0.5 mL to 15 mL, offering flexibility in sample collection. Additionally, the entire fraction collector rack is transferrable, ensuring ease of use and adaptability.
The system boasts a flow rate range of 0.5 mL/min to 5 mL/min, with a UV wavelength of 280 nm for protein detection. With a maximum operating pressure of 0.5 MPa and an IP 21 rating, it provides reliable operation in various lab environments. The peristaltic pump features a single-channel, 4-roller pump head that ensures low pulsation and stable flow. The ÄKTA start system, paired with the Frac30, is a highly efficient and reliable solution for protein purification, making it ideal for research applications requiring flexibility, ease of use, and precision.
Key Features of the AKTA Start Protein Purification System:
- Flow Rate 0.5 ml/min to 5 ml/min
- Flow Cell Optical Path Length 2 mm

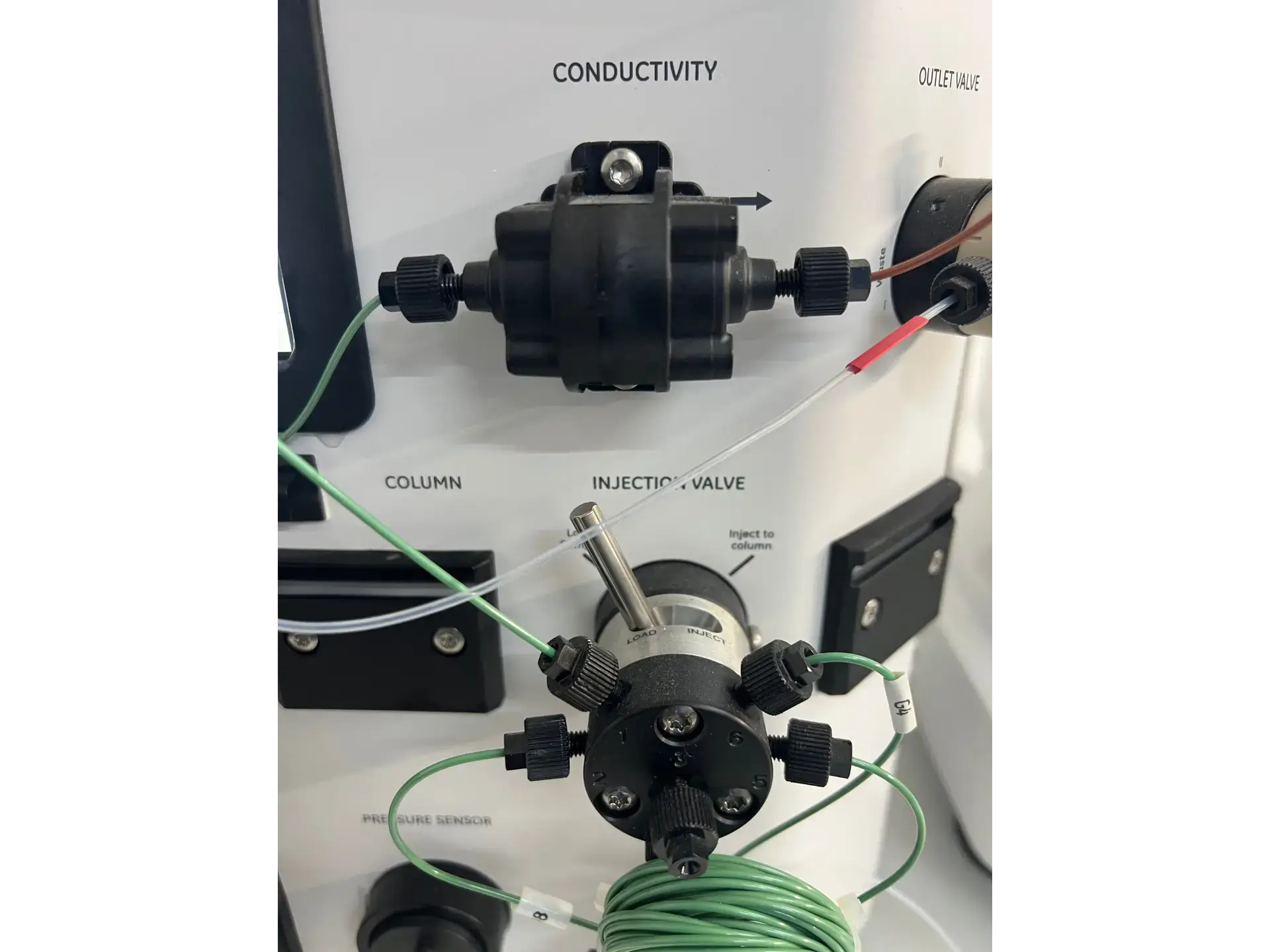

- 3 Ports Per Valve

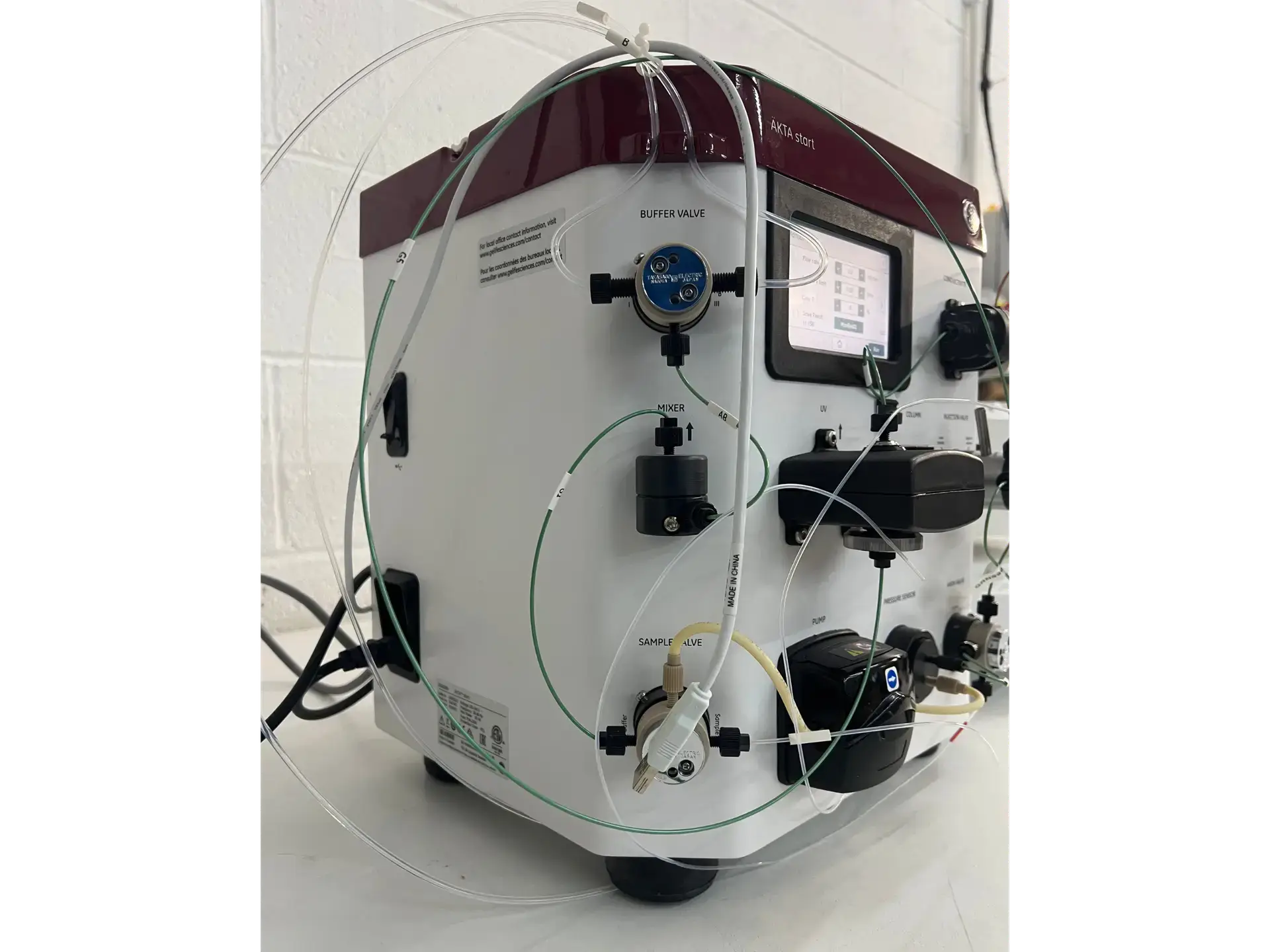

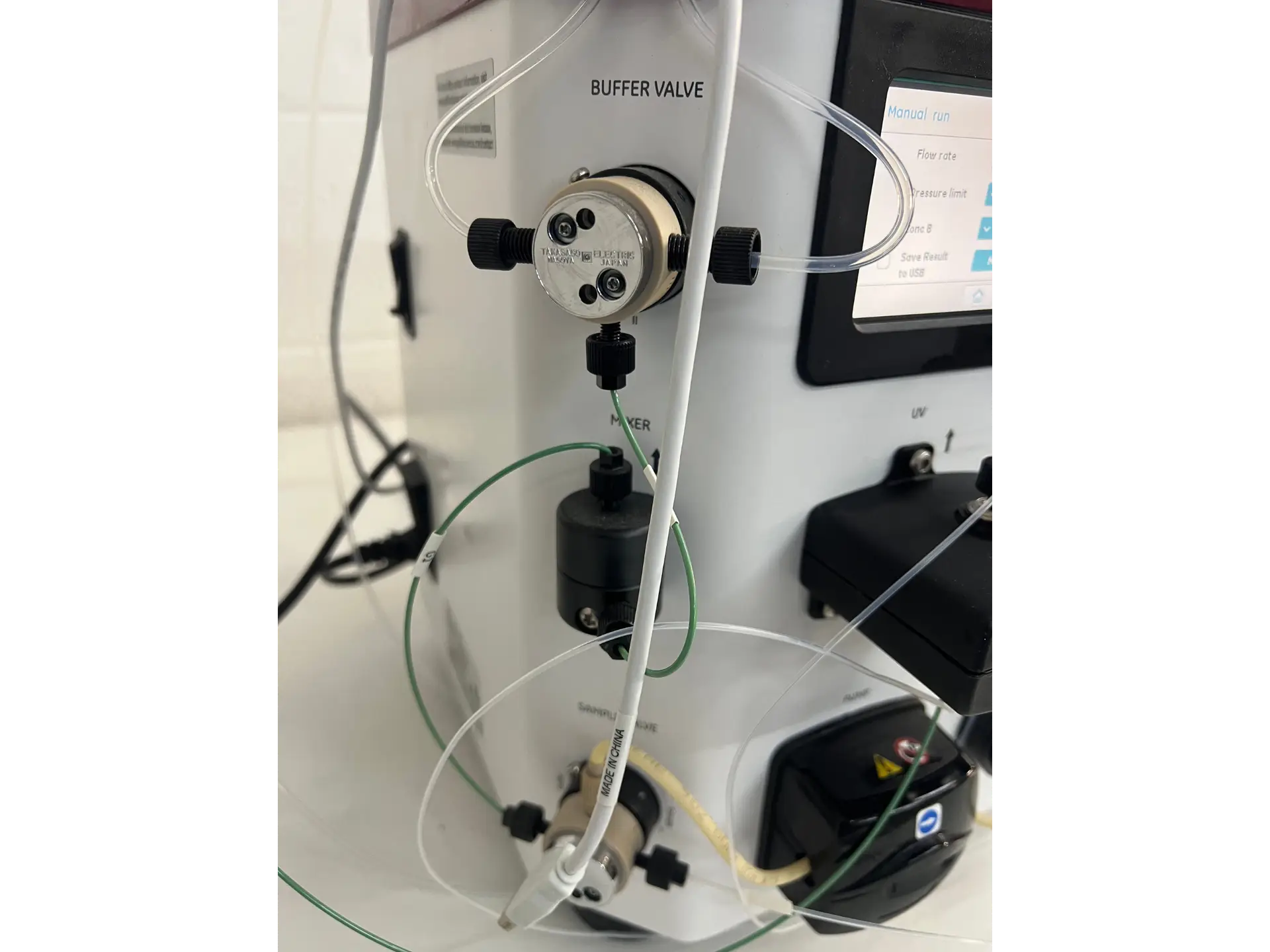

- Buffer Valve and Sample Valve: 2 In/1 Out
- Wash Valve and Outlet Valve: 1 In/2 Out
- Maximum Operating Pressure 0.5 MPa
- IP 21
- Pump:
- Peristaltic Pump
- Single Channel
- 4 Roller Pump Head
- Low Pulsation
- UV Wavelength 280 nm
- Viscosity Range 0.6 cP to 5 cP

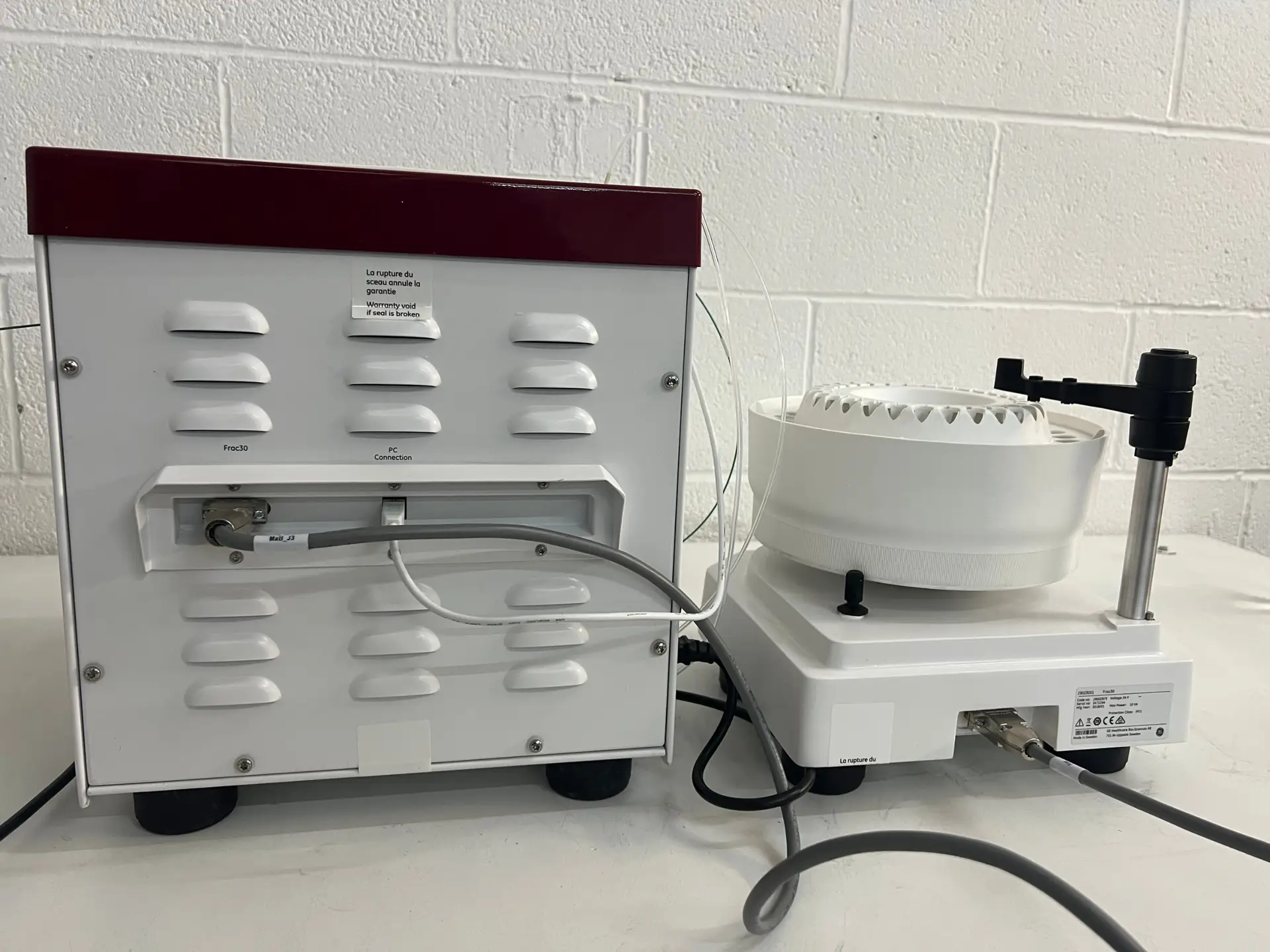

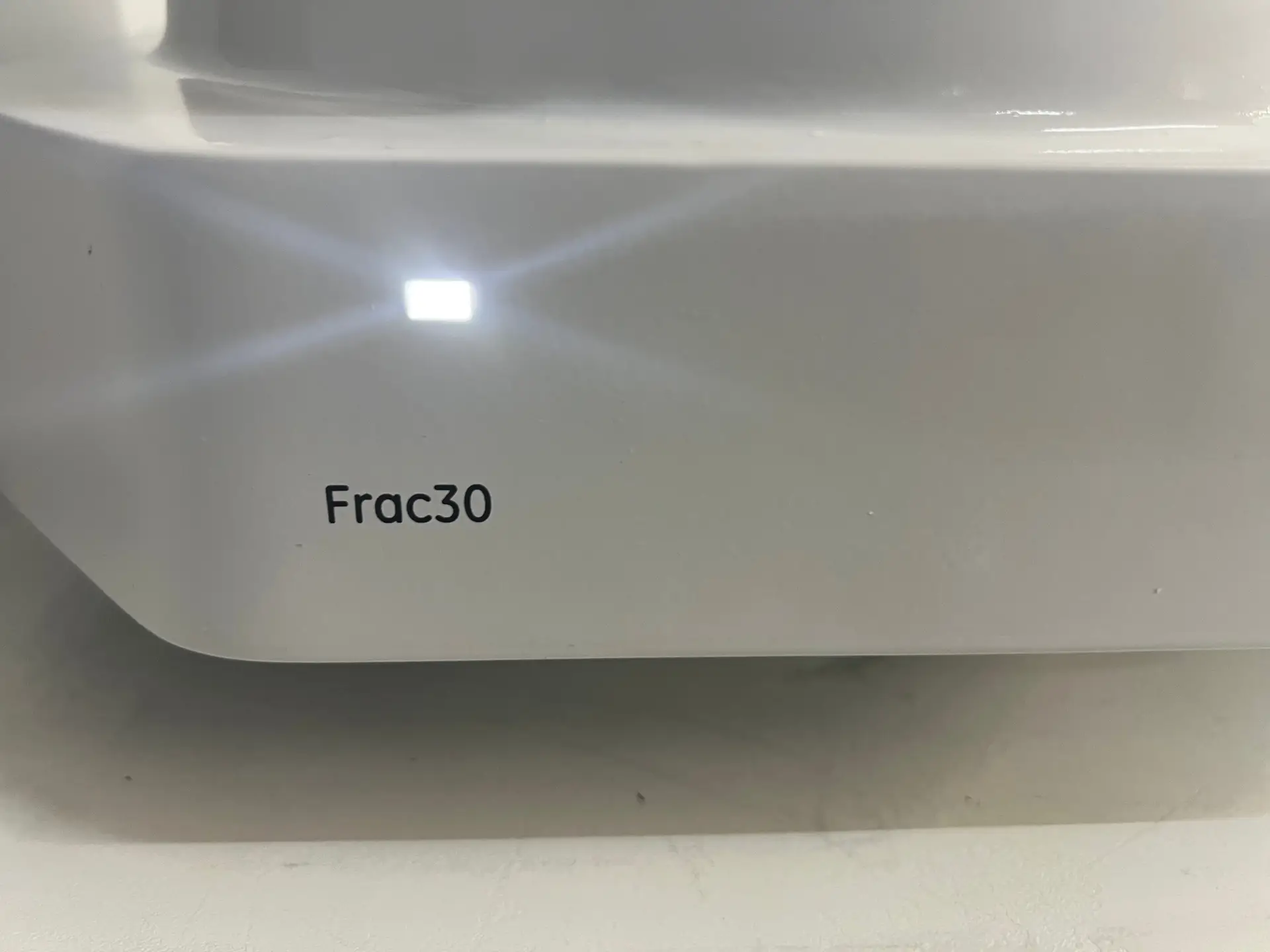

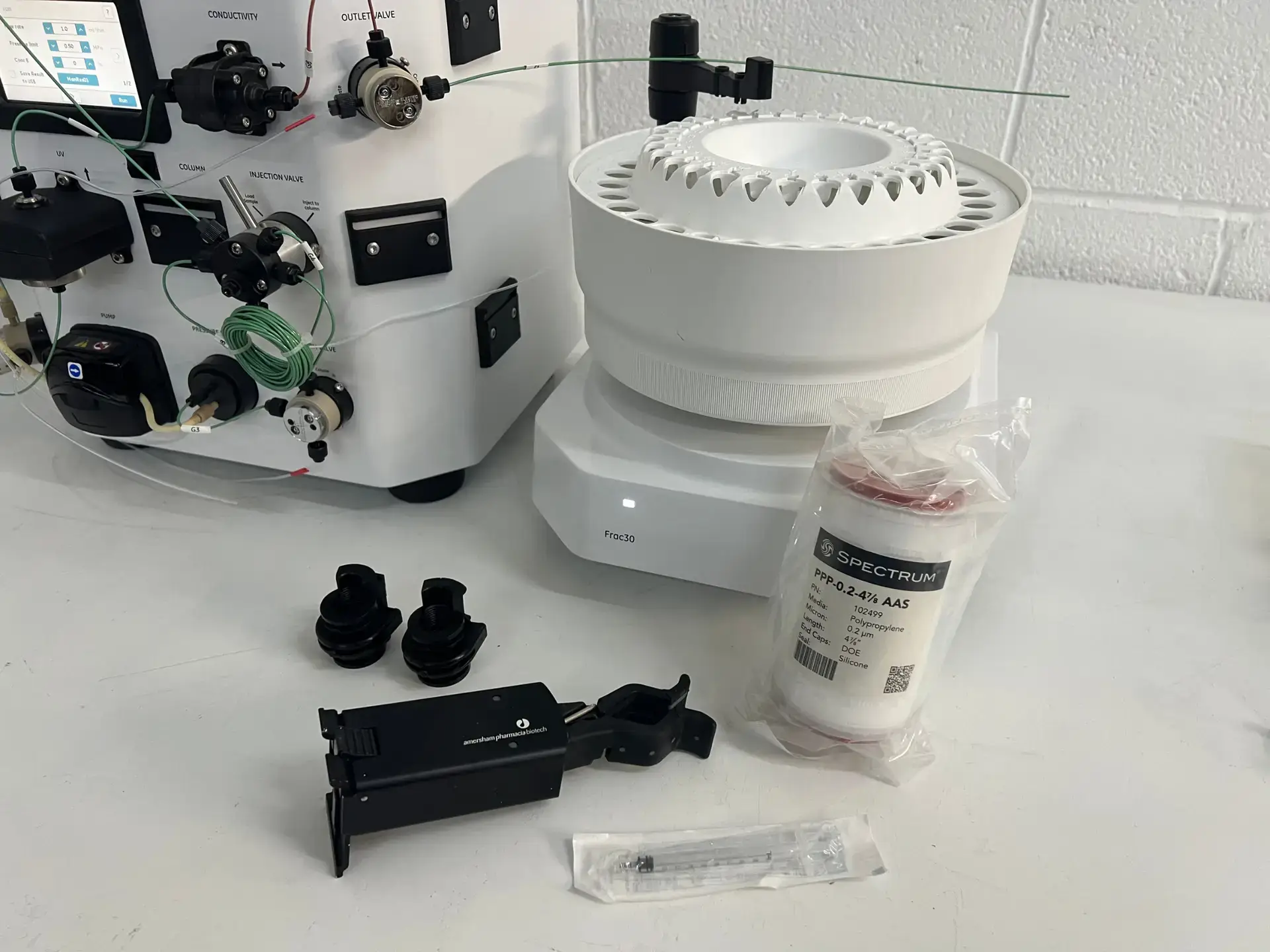

Includes Frac30 Fraction Collector:
- Collect up to 30 Fractions
- Supports Four Tueb Sizes 1.5 mL to 15 mL
- Fraction Volume Range 0.5 mL to 15 mL
- Entire Fraction Collector Rack Transferrable
