Description

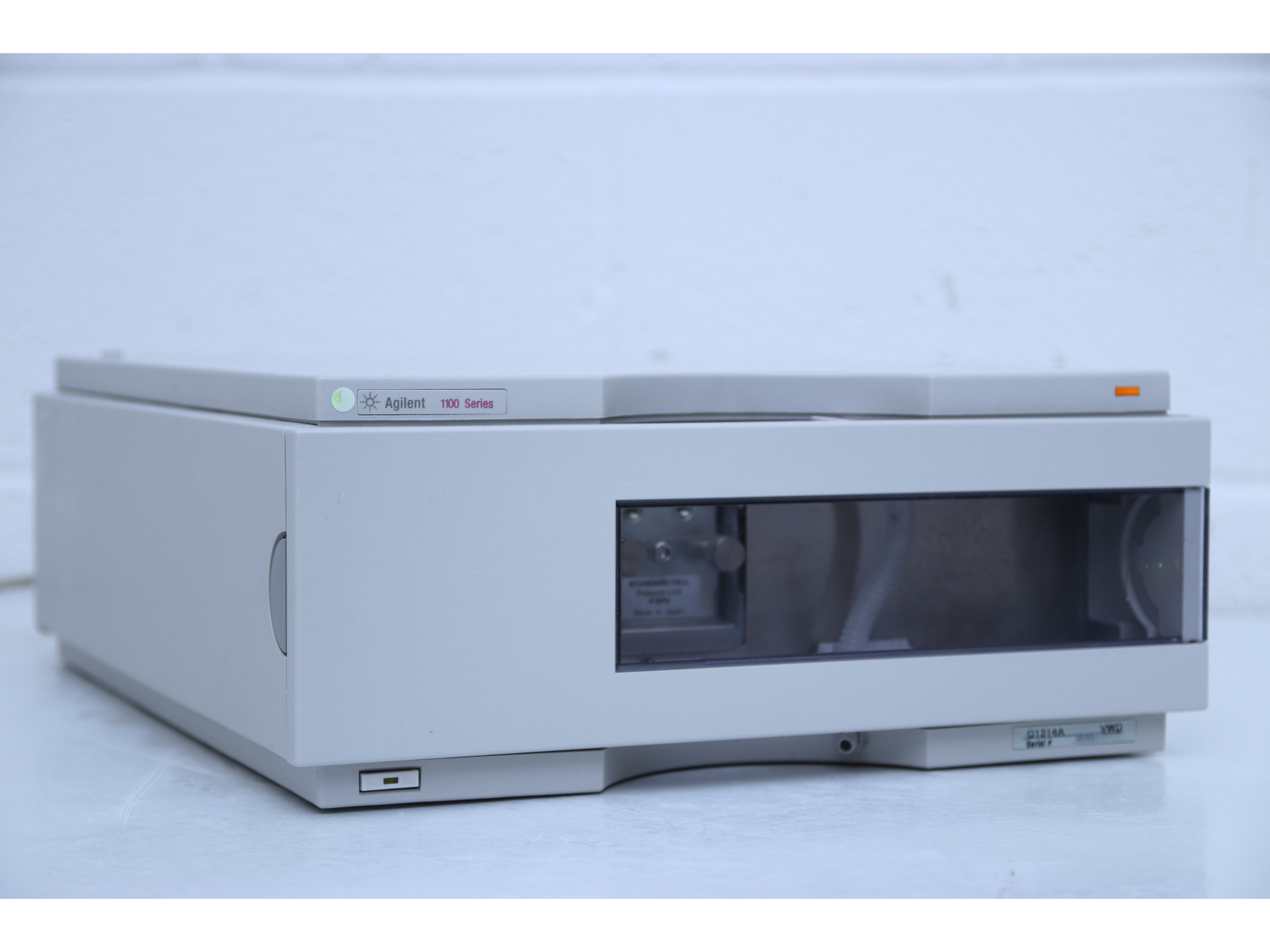

The Agilent G1314A VWD Variable Wavelength Detector employs a double-beam photometer detection system with a deuterium lamp as its light source. It operates within a wavelength range of 190 nm to 600 nm, delivering a wavelength accuracy of ±1 nm and a typical band width of 6.5 nm. The detector exhibits minimal drift, measured at 3 × 10⁻⁴ AU/hr at 254 nm, ensuring stable and reliable performance.
Key Features of the Agilent G1314A VWD Variable Wavelength Detector:
- Double Beam Photometer Detection
- Deuterium Lamp
- Wavelength Range 190 nm to 600 nm
- Wavelength Accuracy ± 1 nm
- Band Width Typically 6.5 nm
- Drift 3 × 10-4 AU/hr at 254 nm

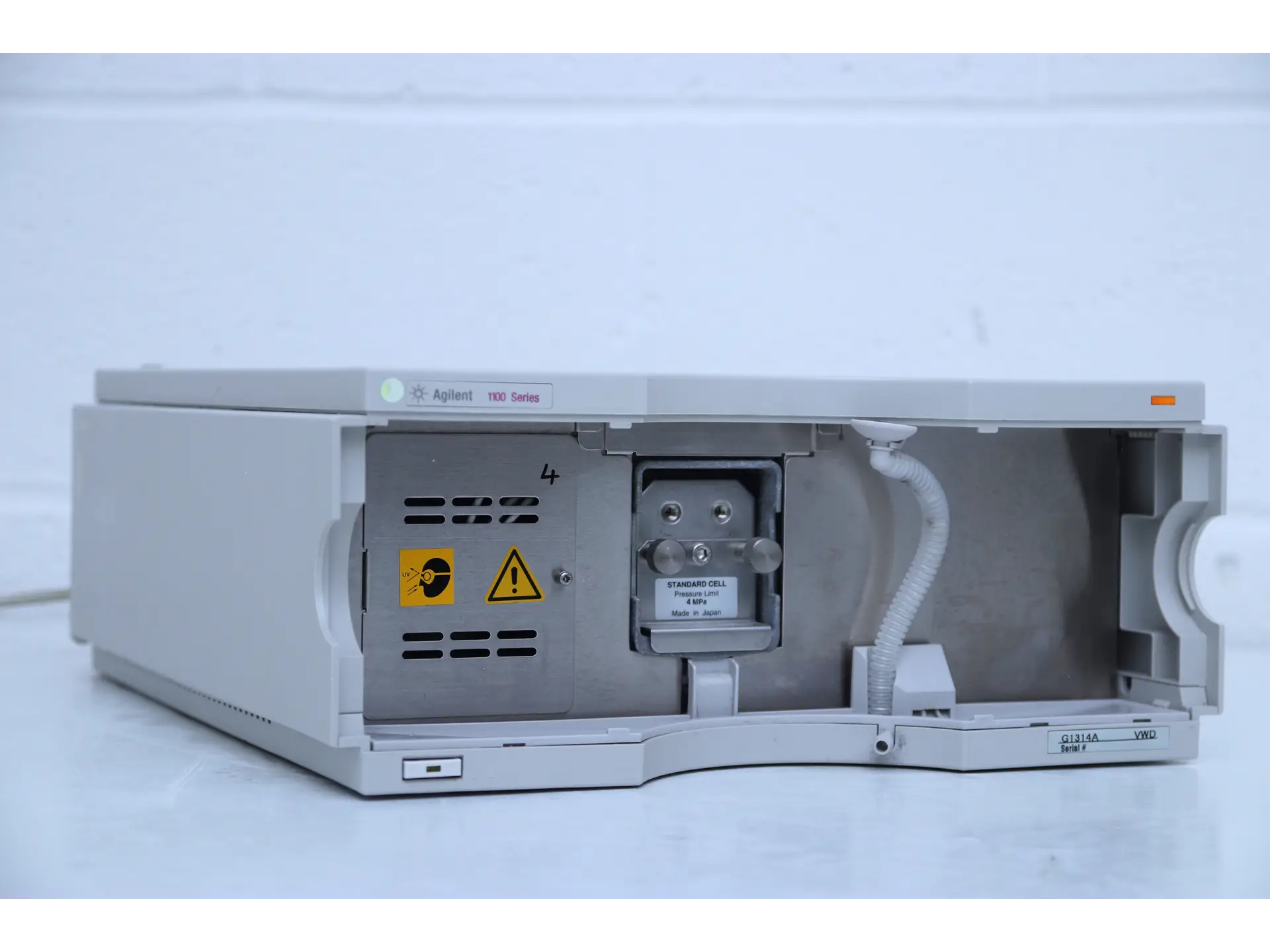

- Flow Cells:
- Standard: 14-μl volume, 10-
mm cell path length and 40
bar (588 psi) pressure
maximum - High pressure: 14-μl volume,
10-mm cell path length and
400 bar (5880 psi) pressure
maximum - Micro: 1-μl volume, 5-mm cell
path length and 40 bar (588
psi) pressure maximum - Semimicro: 5-μl volume, 6-
mm cell path length and 40
bar (588 psi) pressure
maximum
- Standard: 14-μl volume, 10-
- Error Detection and Display
- Leak Detection
- Safe Leak Handling
- Early Maintenance Feedback (EMF)
- Communication:
- Controller-Area Network (CAN)
- GPIB
- RS232C
- APG Remote
