Description

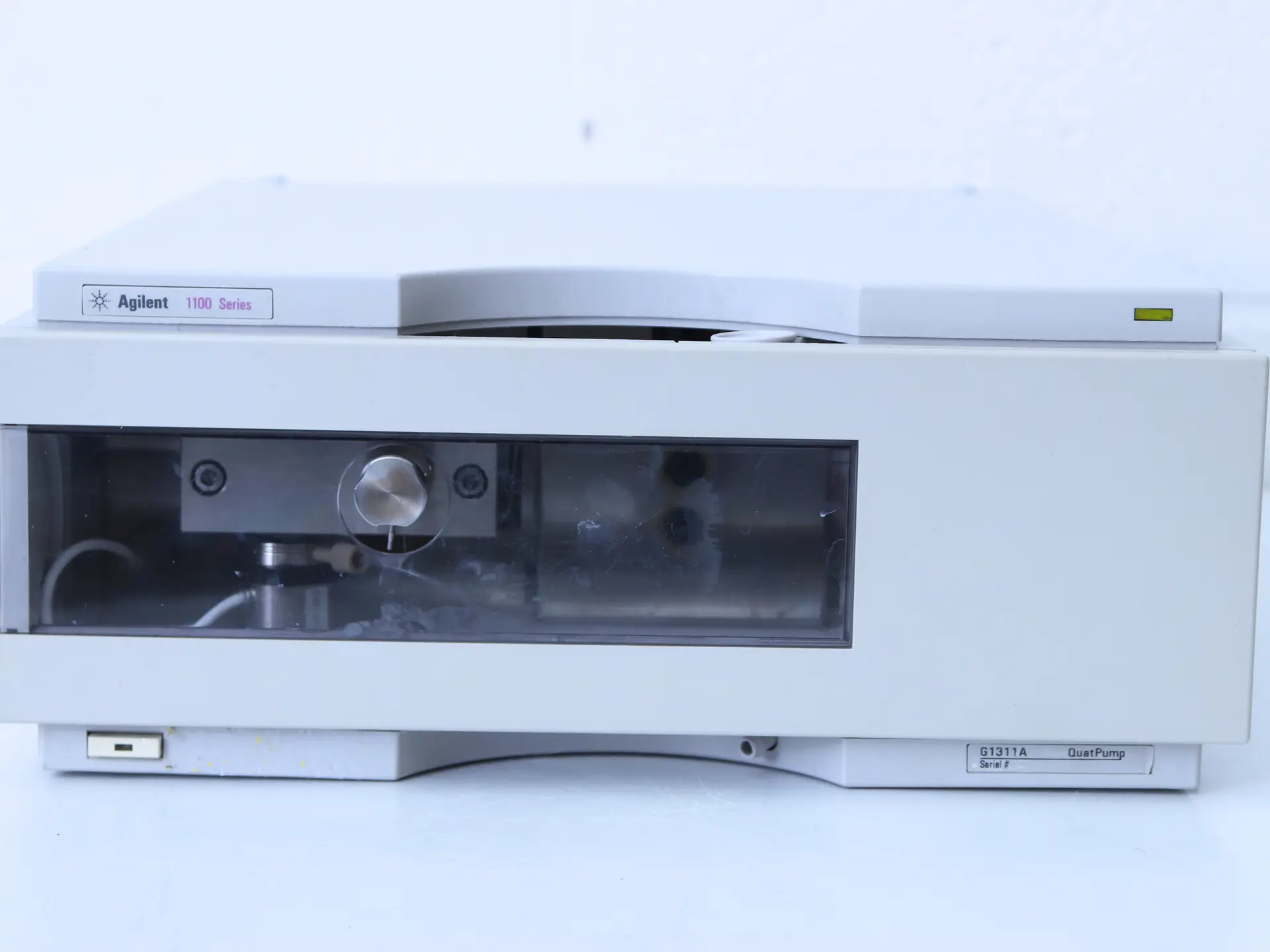

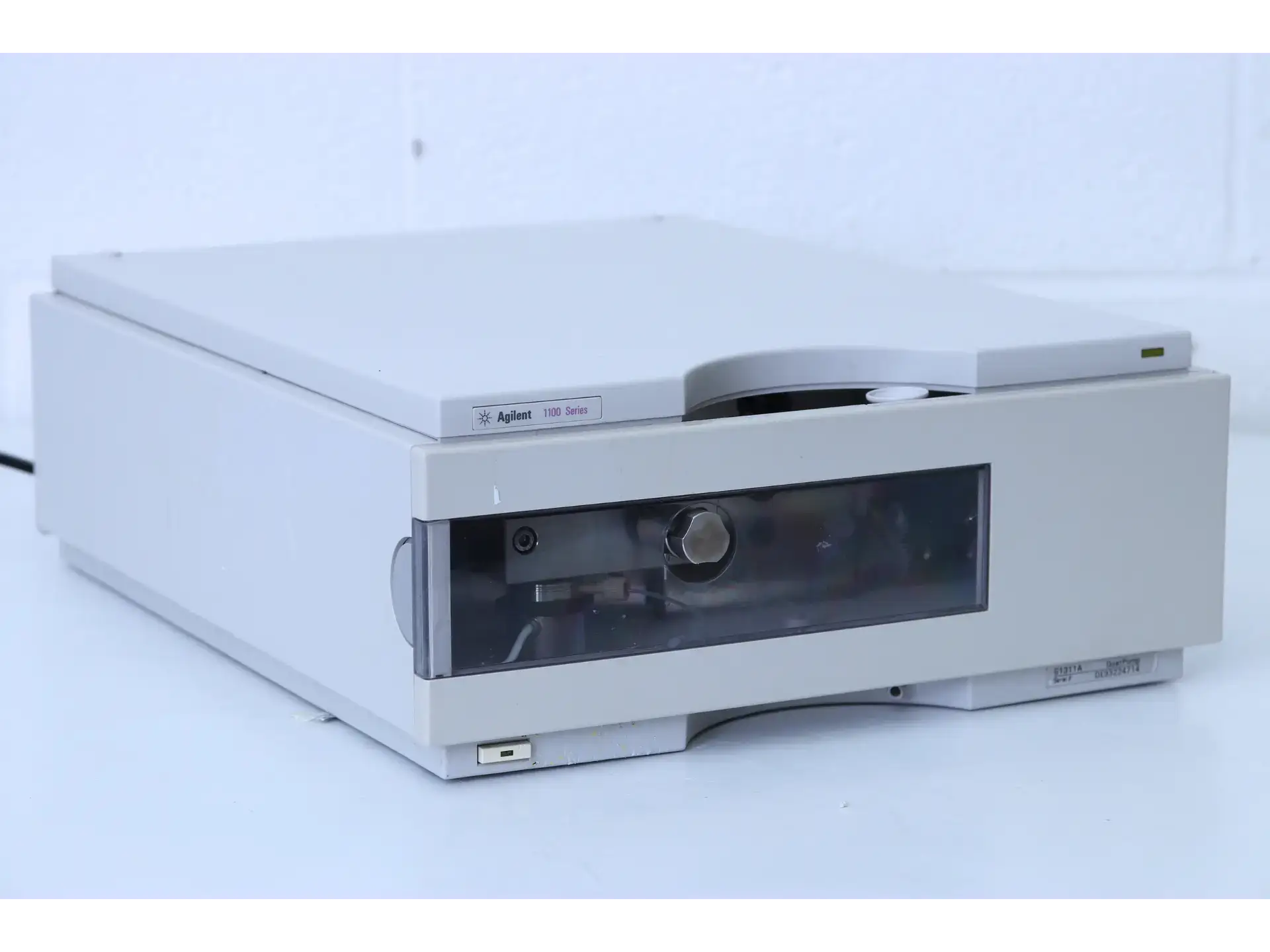

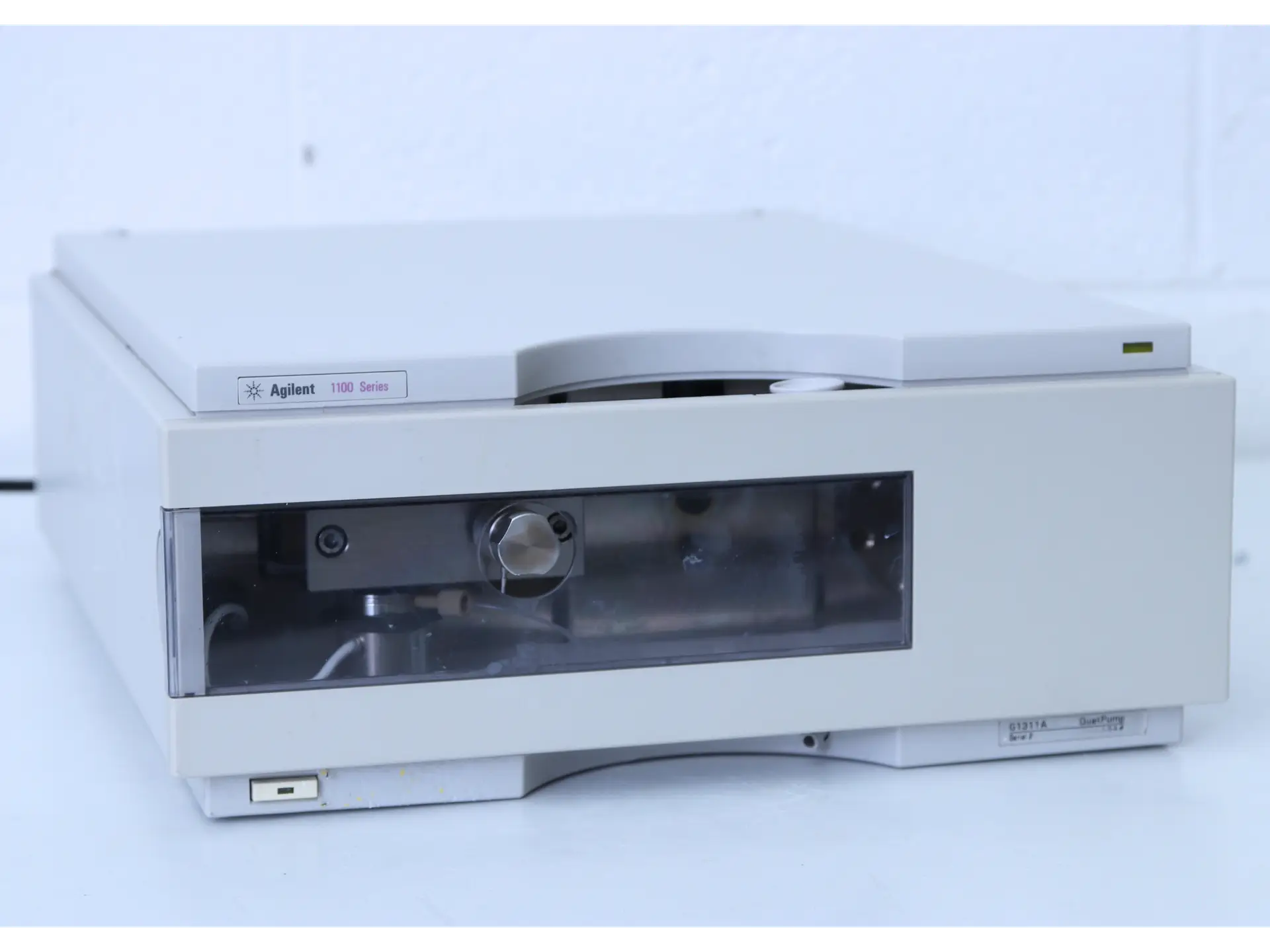

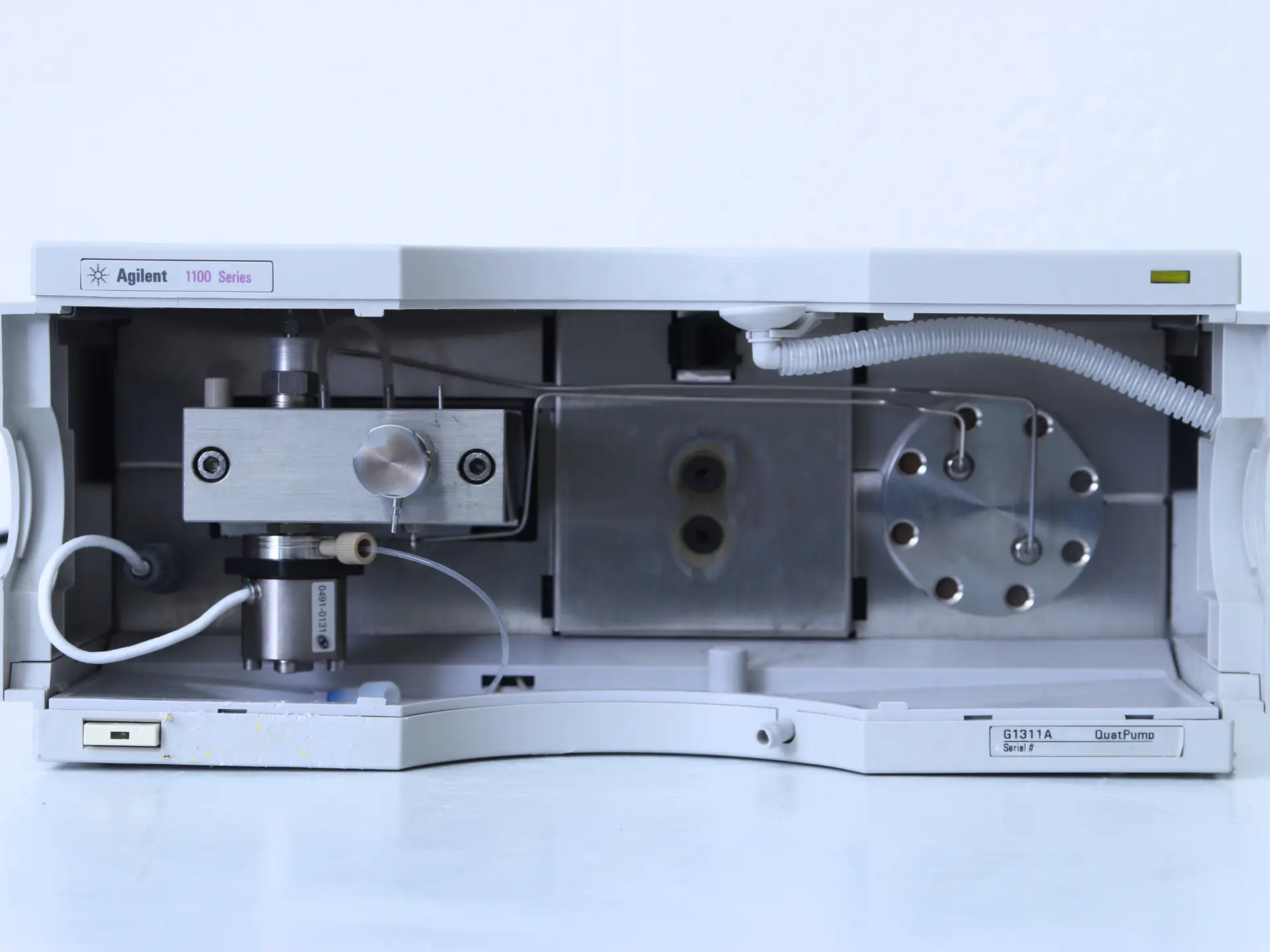

The Agilent G1311A Quaternary Pump 1100 Series delivers precise and versatile flow control, with a settable flow range spanning from 0.001 mL/min to 10 mL/min, adjustable in increments as fine as 0.001 mL/min. The pump achieves exceptional flow precision, maintaining less than 0.3% RSD based on retention time at a flow rate of 1 mL/min.
The pump operates reliably across a wide pressure range. It supports pressures from 0 to 40 MPa at flow rates up to 5 mL/min and from 0 to 20 MPa at flow rates up to 10 mL/min. User-selectable compressibility compensation allows for optimal performance tailored to various solvents and applications. Designed for flexibility, the pump accommodates a recommended pH range from 1.0 to 12.5, making it suitable for a variety of analytical methods. The system employs low-pressure quaternary mixing, ensuring accurate blending of up to four solvents for efficient gradient formation.
Key Features of the Agilent G1311A Quaternary Pump 1100 Series:
- Setable Flow Range 0.001 mL/min to 10 mL/min
- 0.001 mL/min
- Flow Precision < 0.3% RSD, based on retention time at 1 mL/min
- Pressure Operating Range:
- 0 to 40 MPa up to 5 mL/min
- 0 to 20Â MPa up to 10 mL/min
- User Selectable Compressibility Compensation
- Recommended pH Range 1.0 to 12.5
- Low Pressure Quaternary Mixing
