Description

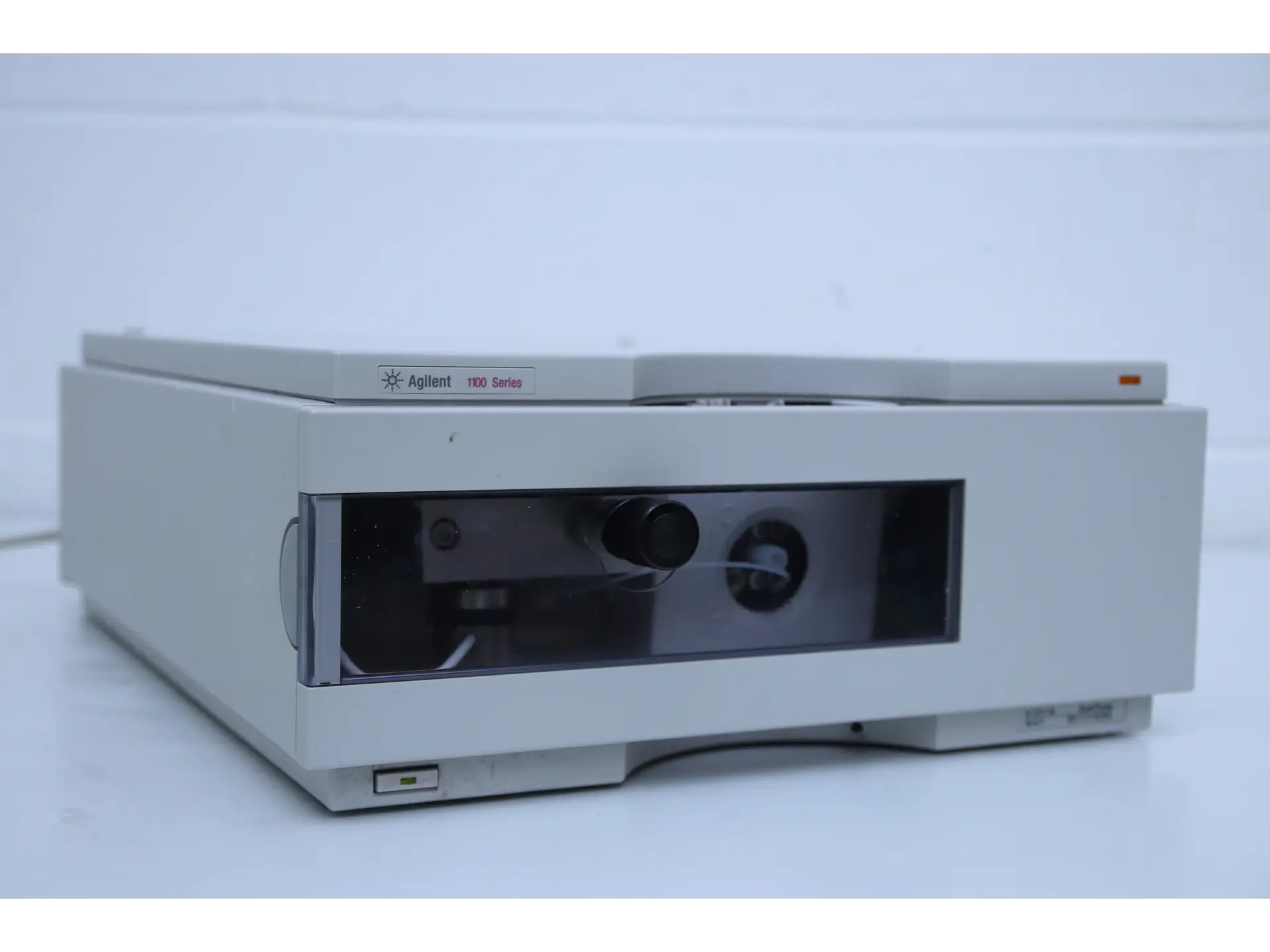

The Agilent G1311A Quaternary Pump features a robust hydraulic system with a dual plunger design and an in-series pump configuration. It includes an active inlet valve to ensure precise and reliable operation. The pump offers low-pressure quaternary mixing and gradient capabilities, making it versatile for various applications. Users can set flow rates within a range of 0.001 to 10 mL/min, adjustable in precise increments of 0.001 mL/min. The operational flow range extends from 0.2 to 10 mL/min. The pump handles pressures from 0 to 400 bar for flow rates up to 5 mL/min and 0 to 200 bar for flow rates up to 10 mL/min.
It also supports user-selectable compressibility compensation for optimal performance. The G1311A operates within a recommended pH range of 1.0 to 12.5 and provides advanced features such as Early Maintenance Feedback (EMF), leak detection, and safe leak handling. For communication, the quaternary pump integrates seamlessly with Controller-Area Network (CAN), GPIB, RS232C, and APG Remote interfaces, ensuring compatibility with various laboratory setups.
Key Features of the Agilent G1311A Quat Pump:
- Hydraulic System:
- Dual Plunger
- In Series Pump
- Active Inlet Valve
- Low Pressure Quaternary Mixing/Gradient Capability
- Setable Flow Range 0.001 to 10 mL/min
- 0.001 mL/min Increments
- Flow Range 0.2 to 10 mL/min
- Pressure:
- 0 to 400 bar up to 5 mL/min
- 0 to 200 bar up to 10 mL/min
- User-Selectable Compressibility Compensation
- Recommended pH Range 1.0 to 12.5
- Early Maintenance Feedback (EMF)
- Leak Detection
- Safe Leak Handling

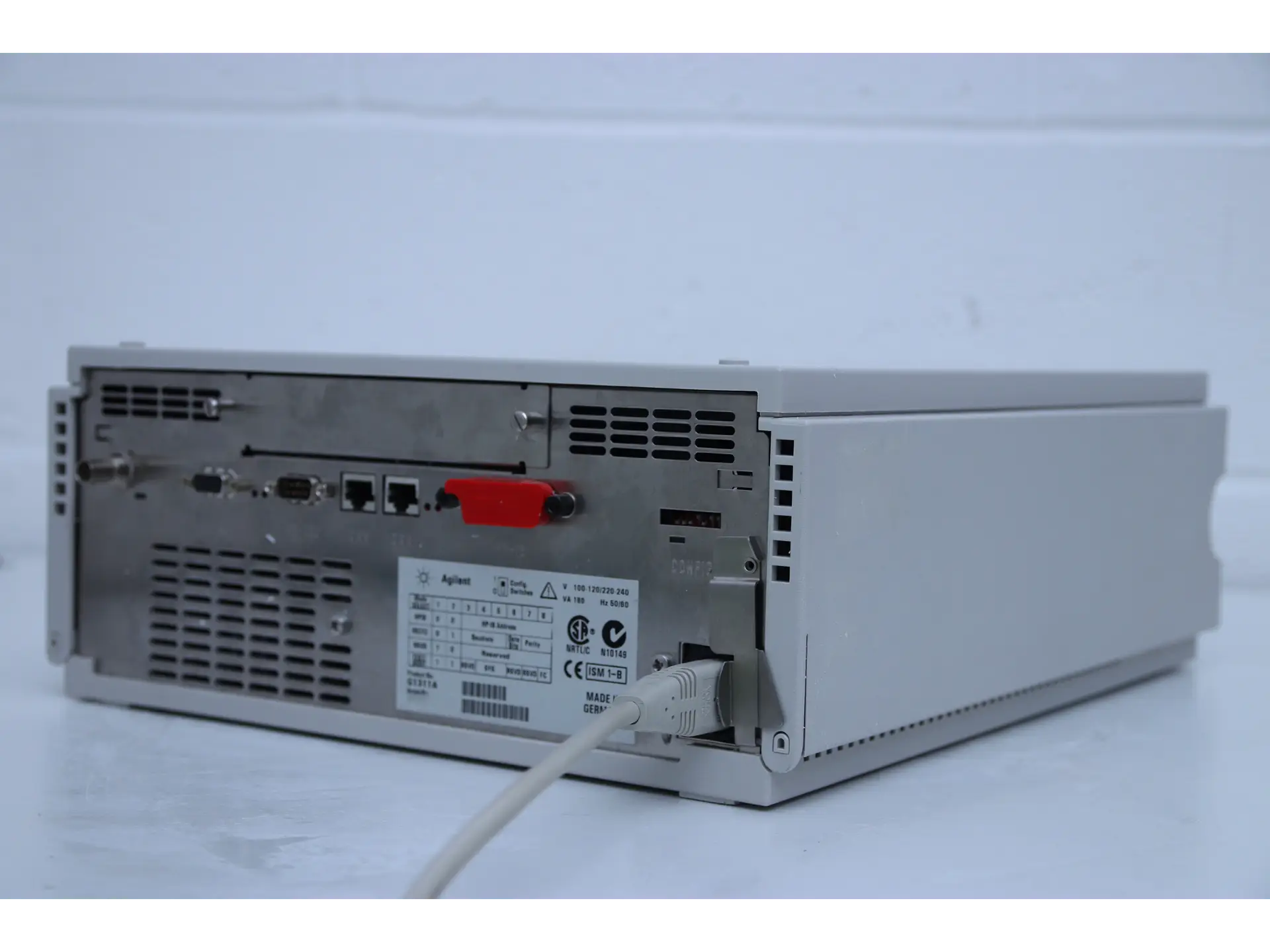

- Communication:
- Controller-Area Network (CAN)
- GPIB
- RS232C
- APG Remote
